- Z-Wave Smart Plug SR-ZV9020A
Product Description

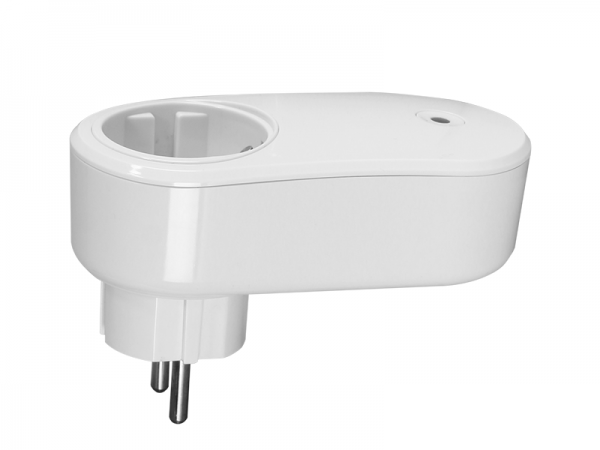

The Z-Wave Smart Plug is a Z-Wave device that is used to power connected lighting using Z-Wave Plus and can be controlled by other Z-Wave devices. The device cannot act as Z-Wave network controller (primary or secondary) and will always need a Z-Wave network controller to be included into a Z-Wave network.
The encryption modes that the smart plug supports are S0, S2 Unauthenticated. When the smart plug is being included into a Z-Wave network, you can use your primary controller/gateway to enable one encryption mode or disable encryption. (The primary controller/gateway shall support encryption mode configuration).
• A Z-Wave device that is used to power connected lighting using Z-Wave Plus
• Can be controlled by other Z-Wave devices
• Cannot act as Z-Wave network controller (primary or secondary)
• Always needs a Z-Wave network controller to be included into a Z-Wave network
• Supported encryption modes: S0, S2 Unauthenticated
• Use your primary controller/gateway to enable one encryption mode or disable encryption with the smart plug being included into a Z-Wave network
Specifications
Part No. |
Input Voltage |
Radio Frequency |
Max. Load | Size(LxWxH) |
---|---|---|---|---|
SR-ZV9020A |
200-240VAC |
868.42 MHZ (EU)/869.0 MHZ (RU)/908.42 MHZ (US) |
16A/3680W |
114.8×54.8×74.7(mm) |
Function Introduction
Function Introduction
Download Center
To know further details of this product, please download the following user manual.
SR-ZV9020A-Instruction.pdf
