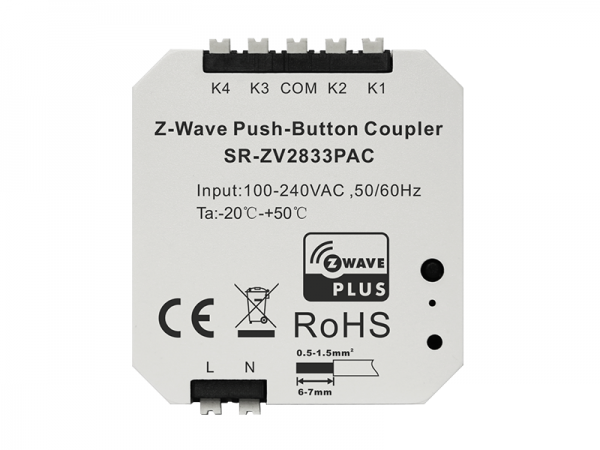

Product Description
The push-button coupler is a Z-Wave device that integrates existing switches into a Z-Wave system and converts the switches to wireless Z-Wave signal, and the coupler can both control other Z-Wave devices and activate scenes in Gateways. The push-button coupler can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Although it is controlling other devices, the device cannot act as Z-Wave network controller (primary or secondary) and will always need a Z-Wave network controller to be included into a Z-Wave network. It also supports the Over The Air (OTA) feature for the product’s firmware upgrade.
This device supports the SmartStart inclusion. SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
The push-button coupler has following functions:
1. Control of other Z-Wave devices using 'ON', 'OFF', Dim commands.
2. Activation of scenes in Gateway mode.
The encryption modes that the push-button coupler supports are S0, S2 Authenticated, S2 Unauthenticated. When the coupler is being included into a Z-Wave network, you can use your primary controller/gateway to enable one encryption mode or disable encryption. (The primary controller/gateway shall support encryption mode configuration).
Key Features
• A Z-Wave device that integrates existing switches into a Z-Wave system and converts the switches to wireless Z-Wave signal
• Can both control other Z-Wave devices and activate scenes in Gateways
• Can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications
• Makes all non-battery operated nodes within the network act as repeaters regardless of vendor to increase reliability of the network
• Cannot act as Z-Wave network controller (primary or secondary) and will always need a Z-Wave network controller to be included into a Z-Wave network
• Supports the Over The Air (OTA) feature for the product’s firmware upgrade
• Supports the SmartStart inclusion. SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion
• No need of further action
• Will be added automatically within 10 minutes of being switched on in the network vicinity
• Supported encryption modes: S0, S2 Authenticated, S2 Unauthenticated
Specifications
Part No. |
Power Supply |
Power Consumption |
Operating temperature | Size(LxWxH) |
---|---|---|---|---|
SR-ZV2833PAC |
100-240VAC |
< 0.5W |
0 to 40°C |
49.8x43x15.1mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZV2833PAC-Instruction.pdf
