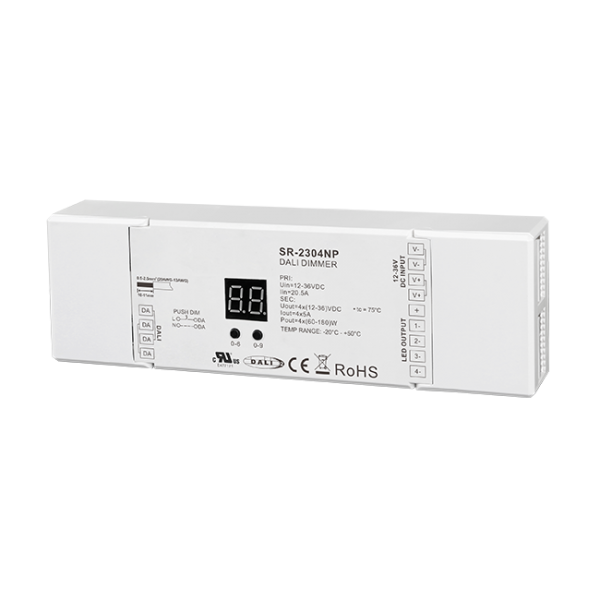

Universal Series DALI Dimmer with Four Channels SR-2304NP

This universal series DALI dimmer is a DALI-2, CE and FC certified device, with 12-36VDC power input. Its four channels enable to set addresses from one to four. With manual set button, the DALI address setting can be operated both manually and automatically. This dimmer is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and can match all DALI systems in the market, so that you can rest assured to use it. Moreover, this device can work with power repeater to expand output power unlimitedly. DALI address digital display allows digits to be showed clearly.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Four channels, can set addresses from one to four.

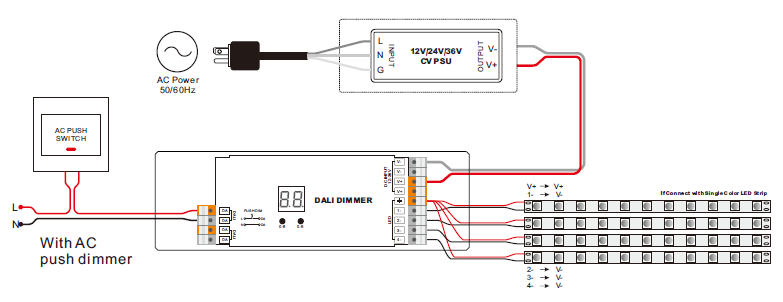

• Push dimmer/DALI dimmer optional
• Built-in DALI-2 interface, DALI DT6 device

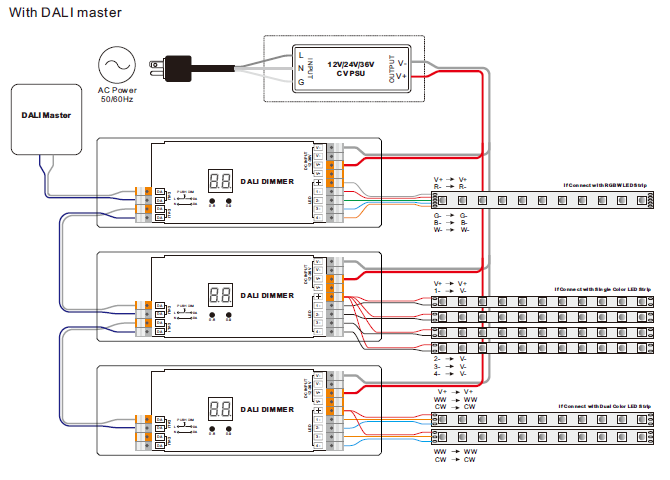

• Match all DALI systems in the market
• Waterproof grade:IP20
• Manual /automatically DALI address setting
• To work with power repeater to expand output power unlimitedly.
• DALI address digital indicate
