Ultra Slim DALI-2 Driver for Magnet Track Lights System SRP-2305-MT-48VCC100-700S

With super-slim design, this DALI-2 LED driver for magnet track light is specially devised for magnet track lights & linear lights.

Key Features

Super slim design size: L*W*H= 113mm*8mm*3mm
Special design for magnet track light and linear lighting
Magnet absorption installation application, no high frequency interference sound
DC48V input, max. output power 20W total
1 channels 100-700mA constant current output, dips to select multi operation current
Deep and smooth dimming to 0.1%, flicker free
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
Configuration via DALI-2 master
Waterproof grade: IP20
5 years warranty

Specifications

Input Voltage	Input Current	Output Voltage	Standby Power	Rated Power	LED Channel	Selectable Current	Size (LWH)
24-48VDC	0.1A@full load	3-40VDC	<0.5W	24V DC	1 Channel	100-700mA	11383 mm

Function Introduction

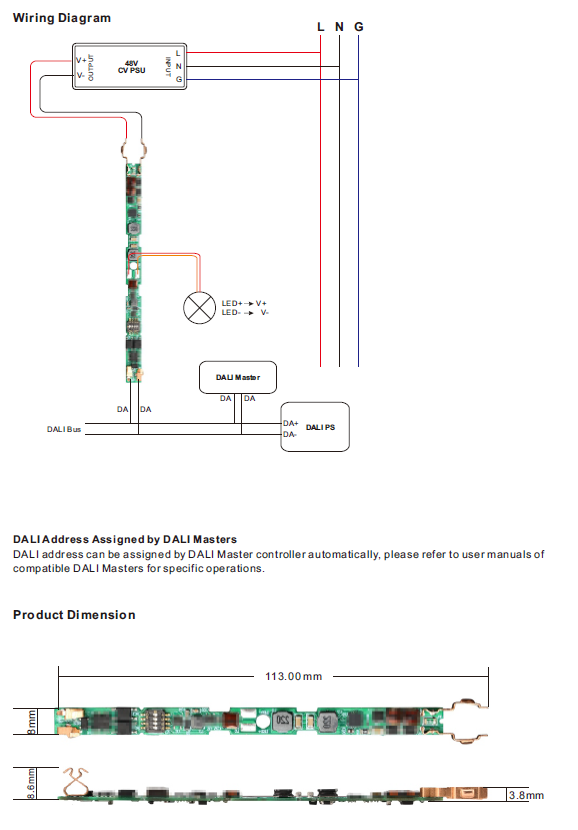

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SRP-2305-MT-48VCC100-700S User Manual.pdf
