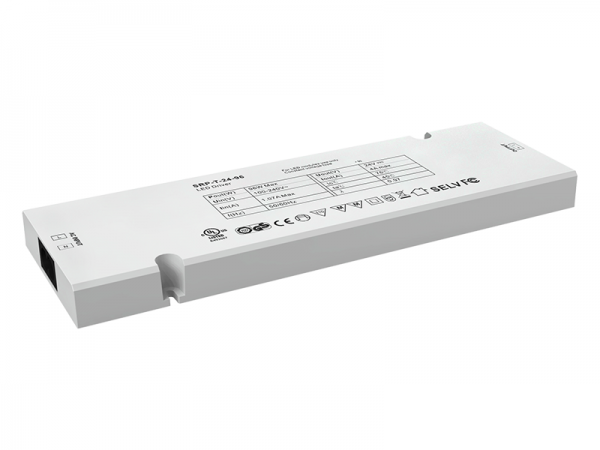

Ultra Slim 96W LED Driver SRP-T-24-96

Product Description

With ultra slim design, this driver is with 1 channel 24VDC/48VDC constant voltage output. With class Ⅱ power supply and full isolated plastic case, this device is endowed with built-in active PFC function. Its PF is > 0.9, and its efficiency is > 89%. This device is compliant with Safety Extra Low Voltage standard, with short circuit, over load, over temperature protection. Its waterproof grade is of IP20, and is suitable for indoor LED lighting applications. The warranty period of the driver is 5 years.

Key Features

• Ultra slim design

• 1 channel 24VDC/48VDC constant voltage output

• Class Ⅱ power supply, full isolated plastic case

• Built-in active PFC function

• PF > 0.9, Efficiency > 89%

• Compliant with Safety Extra Low Voltage standard

• Short circuit, over load, over temperature protection

• IP20 rating, suitable for indoor LED lighting applications

• 5 years warranty

Specifications

Part No.	Voltage Range	Max. Max. Current	Size (LWH)	Output Frequency Range	Output Rated Power
SRP-T-24-96	100-240V AC	4/2A max.	216x70x16mm	50/60Hz	max. 96W

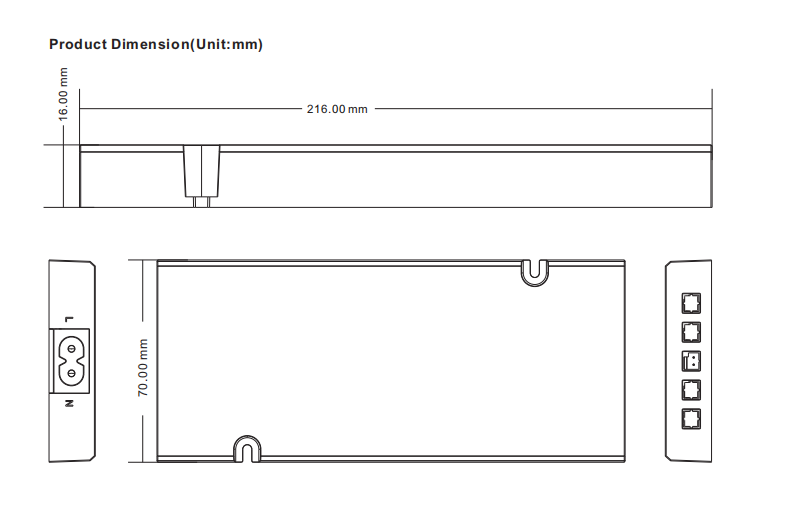

Product Dimension

Product Dimension

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SRP-T-24-96-Instruction.pdf
