Product Description

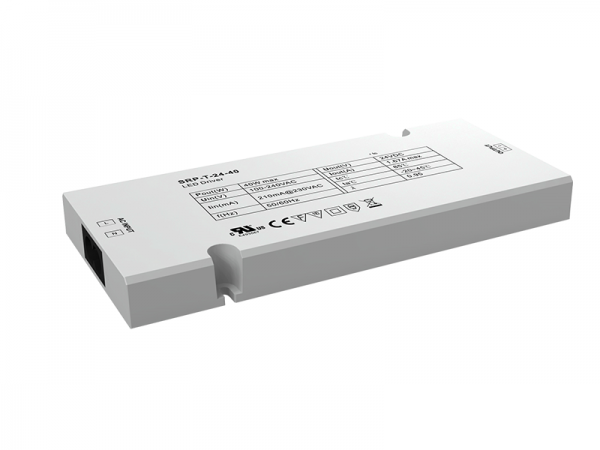

With ultra slim design and 1-channel 24VDC constant voltage output, this Ultra Slim 40W LED Driver has a full isolated plastic case. Featured with built-in active PFC function, its PF is greater than 0.95 and its efficiency is greater than 86%. This device is compliant with safety extra low voltage standard, and has short circuit, over load and over temperature protection. This driver is suitable for indoor LED lighting applications with 5-year warranty.
• Ultra slim design
• 1 channel 24VDC constant voltage output
• Class Ⅱ power supply, full isolated plastic case
• Built-in active PFC function
• PF > 0.95, Efficiency > 86%
• Compliant with Safety Extra Low Voltage standard
• Short circuit, over load, over temperature protection
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Specifications
| Part No. |
Input Voltage Range |
Output Current |
Rated Power | Size(LxWxH) |
|---|---|---|---|---|
|
SRP-T-24-40 |
100-240V AC |
1.67A max. |
max. 40W |
160x70x16mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-T-24-40-Instruction.pdf
