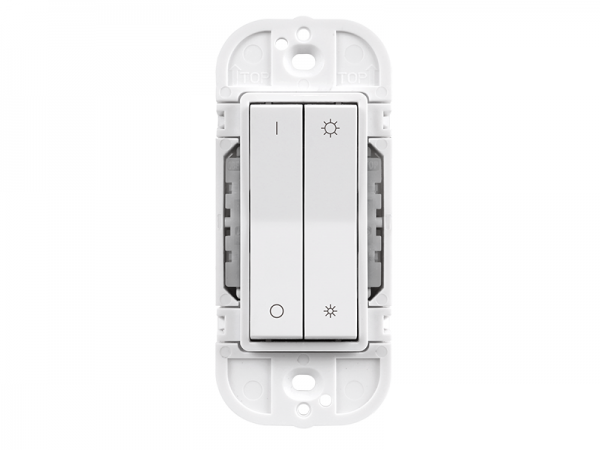

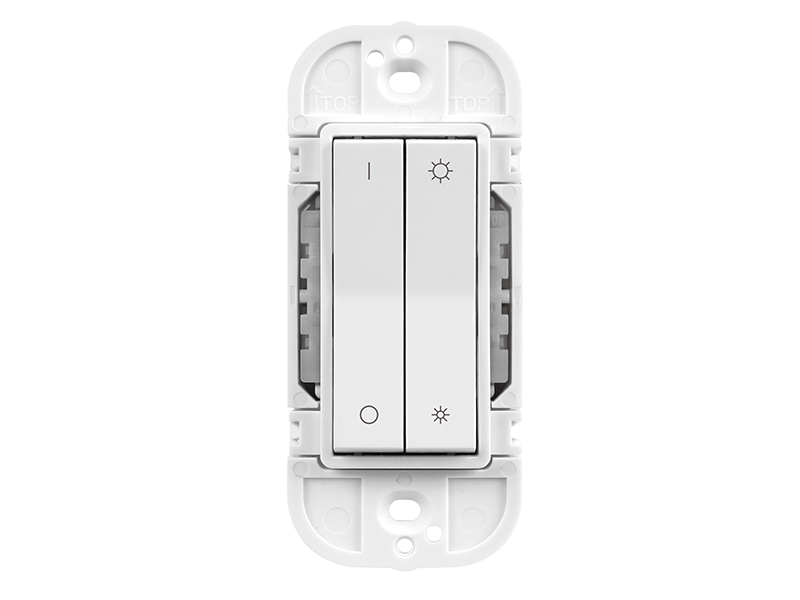

Self Powered RF+Bluetooth DIM Remote Controller SR-SBP2801K4-DIM (US)

Product Description

This Self-powered RF+Bluetooth DIM Remote Controller is based on RF+Bluetooth Mesh. Moreover, with ultra long lifetime and more than 1 million times pushing, it is easily and quickly pair to the RF+Bluetooth receivers by simply pushing the buttons. With standard size, this control is compatible with existing US size frame. For this self-powered wall remote, there is no battery replacement & re-installation costs. It enables to control 1 zone of receivers, and enables to control universal DIM RF+Bluetooth light devices. With transmission frequency of 2.4 GHz, its transmission range between every two neighbor devices can be up to 30m. Each receiver can be paired to max. 8 remote controls. The controlled receiver status can be quickly synchronized to the smart APP.

Key Features

• DIM wall remote based on RF+Bluetooth Mesh

• Self-powered wall remote, no battery replacement & re-installation costs

• No wires, no batteries, no limits

• Ultra long lifetime, more than 1 million times pushing

• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons

• Enables to control 1 zone of receivers

• Mesh network for further control distance, receivers can transmit signal to each other

• 2.4 GHz global operation

• The controlled receiver status can be quickly synchronized to the smart APP

• Transmission range between every two neighbor devices up to 30m

• Each receiver can be paired to max. 8 remote controls

• Enables to control universal DIM RF+Bluetooth light devices

• Standard size, compatible with existing US size frame

Specifications

Part No.	Power Supply	Transmission Range	Radio frequency	Size(LxWxH)
SR-SBP2801K4-DIM (US)	Self powered	30m	2.4GHz	44.9x106.2x19.2mm

Product Dimension

Product Dimension

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-SBP2801K4-DIM-US-Instruction.pdf
