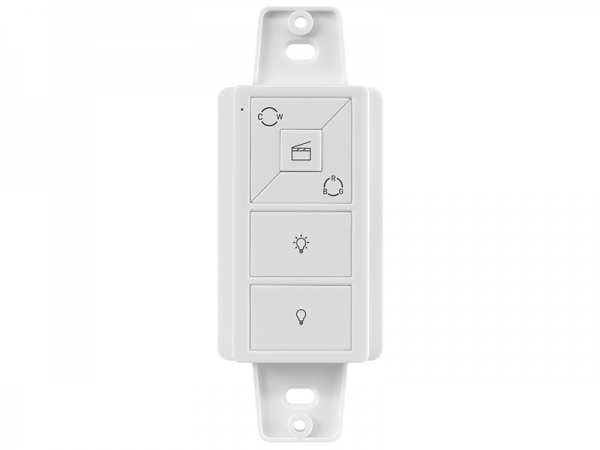

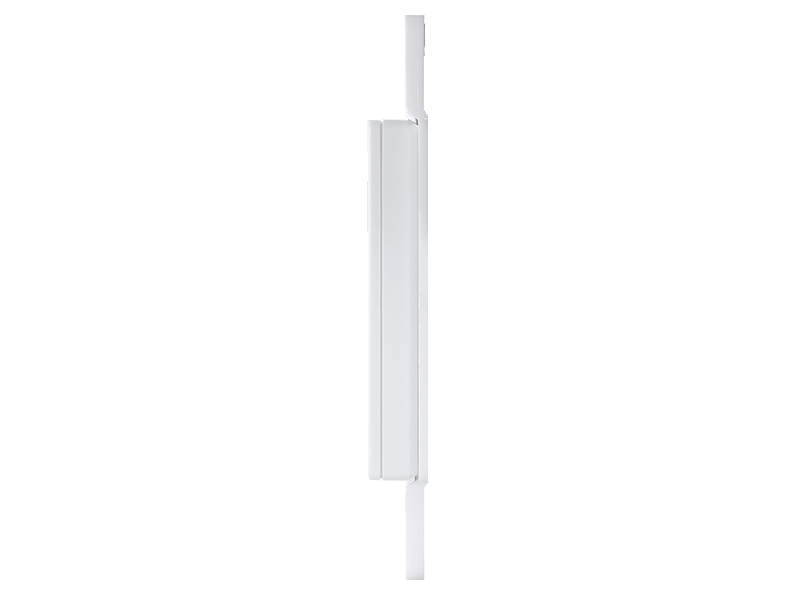

- RGB CCT DIM 3 in 1 Zigbee Remote Controller SR-ZG9001K5-5C
Product Description
This ZigBee RGB+CCT+DIM remote controller is based on ZigBee 3.0. It enables to pair ZigBee lighting devices via Touchlink commissioning without coordinator. This controller supports find and bind mode to pair with ZigBee lighting devices and 1 group for binding max. 30 lighting devices. Its transmission frequency is 2.4 GHz and its transmission range can be up to 30m. Besides, this device is compatible with universal ZigBee Gateway products and universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices.
• ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
• Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
• Supports find and bind mode to pair with ZigBee lighting devices
• Supports 1 group for binding max. 30 lighting devices
• 2.4 GHz global operation
• Long battery life mesh technology
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
Specifications
Part No. |
Transmission Range |
Radio Frequency |
Number of Push Buttons |
Operation Voltage | Size (L*W*H) |
---|---|---|---|---|---|
SR-ZG9001K5-5C |
30m |
2.4GHz |
5 |
3VDC | 66x32.5x8.9mm |
Function Introduction
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9001K5-5C-Instruction.pdf
