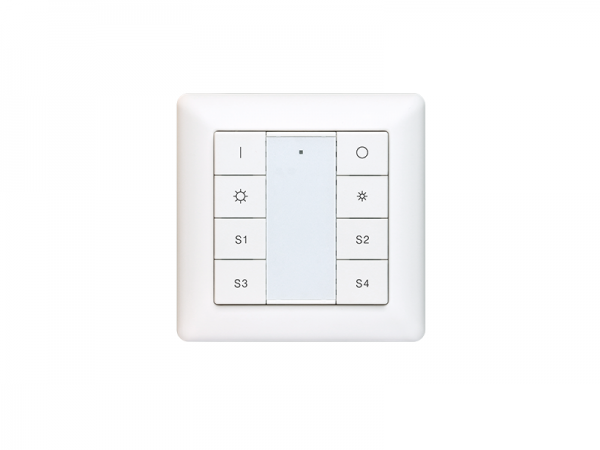

- RF+Bluetooth Wall Mounted Remote Controller SR-SB9001K8-G1-S4
Product Description
This RF+Bluetooth DIM wall mounted remote controller enables to control 1 zone of receivers and save 4 scenes for each zone. This controller can easily and quickly pair to the RF+Bluetooth receivers by simply pushing the buttons. By virtue of mesh network for further control distance, receivers can transmit signal to each other. Each receiver can be paired to max. 8 remote controls. The controlled receiver status can be quickly synchronized to the smart APP and the transmission range between every two neighbor devices can be up to 30m. Besides, low power consumption technology gives Bluetooth a long life.
• RF+Bluetooth DIM wall mounted remote control
• Enables to control 1 zone of receivers
• Enables to save 4 scenes for each zone
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Mesh network for further control distance, receivers can transmit signal to each other
• Each remote can control numerous receivers
• Each receiver can be paired to max. 8 remote controls
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• Bluetooth low power consumption technology, long battery life
• Waterproof grade: IP20
Specifications
Part No. |
Power Supply |
Output |
Operation Frequency | Size(LxWxH) |
---|---|---|---|---|
SR-SB9001K8-G1-S4 |
3V |
RF+Bluetooth |
2.4GHz |
80x80x13.6mm |

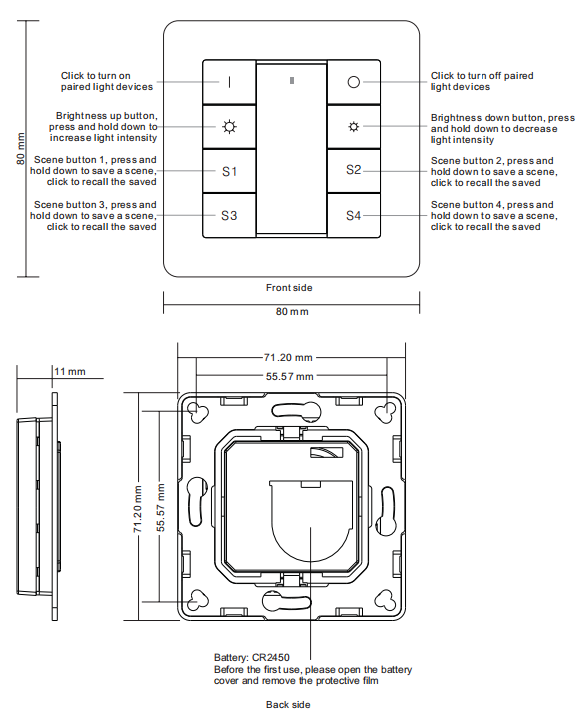

Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-SB9001K8-G1-S4-Instruction.pdf
