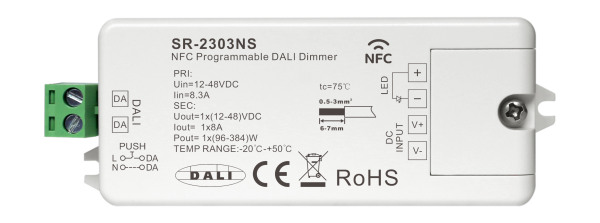

NFC Programmable DALI DALI-2 Dimmer 1CH SR-2303NS

The NFC Programmable DALI Dimmer (1 channel) is a versatile and efficient solution for controlling lighting systems with a constant voltage input of 12-48VDC. Featuring a 1x8A output current, this dimmer is designed for seamless integration into existing DALI systems. It complies with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-207 Ed2 standards, ensuring reliable performance and compatibility. Equipped with a built-in DALI-2 interface and DALI DT6 device, it can easily be paired with any DALI system on the market. The dimmer offers 1 DALI address input and 1 channel PWM output for efficient dimming control. Additionally, multiple parameters can be customized via an NFC tool, providing flexibility in setting up and adjusting the device to meet specific needs.

Features:

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2

• Built-in DALI-2 interface, DALI DT6 device

• Match all DALI systems in the market

• 1 DALI address input, 1 channel PWM output

• Multiple parameters settable via NFC tool

Specifications

Part No.	Input Voltage	Output Current	Output Power	Size(LxWxH)
SR-2303NS	12-48VDC	1x8A@12-36VDC 1x4A@48VDC	1x(96-288)W@12-36VDC 1x192W@48VDC	95x37x20mm

Product Dimension

Product Dimension

Wiring Diagram

Wiring Diagram

Download Center

To know further details of this product, please download the following user manual.

SR-2303NS User Manual
