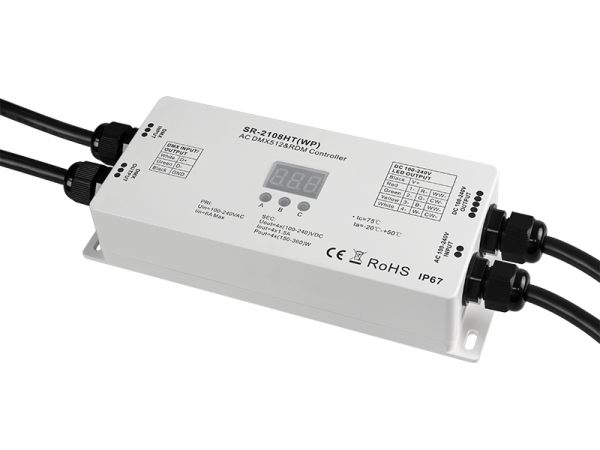

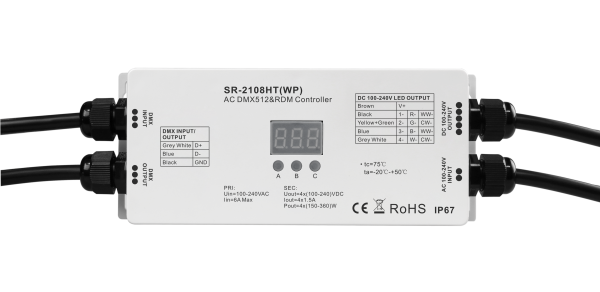

- DMX/RDM High Volt LED Strip Controller SR-2108HT(WP)-EU
Product Description
This RDM enabled DMX high voltage LED strip controller has standard DMX512 compliant control interface. RDM function enables this device to realize intercommunication between DMX master and decoder. For example, DMX decoder’s address can be assigned by DMX master console. With digital display to show data directly, this strip controller can easily set and show DMX address. It has total 4 channels LED output and common anode. DMX address can be set manually, DMX channel quantity can be set from 1CH to 4CH, and output dimming curve gamma value can be set from 0.1 to 9.9. The output PWM frequency can be set from 500HZ to 35K HZ, but do not set higher than 3KHz. Waterproof grade of the device is IP67.
• RDM enabled DMX high voltage LED strip controller
• Output for high voltage DC100~240V LED Strip
• Standard DMX512 compliant control interface
• RDM function enabled to realize intercommunication between DMX master and decoder
• For example, DMX decoder’s address can be assigned by DMX master console
• With digital display to show data directly, easily to set and show DMX address
• Total 4 channels LED output, common anode
• DMX address manually settable
• DMX channel quantity from 1CH~4CH settable
• Output PWM frequency from 500HZ ~ 35K HZ settable, but do not set it higher than 3KHz
• Output dimming curve gamma value from 0.1 ~ 9.9 settable
• Waterproof grade:IP67
Specifications
Part No. |
Input Voltage |
Output |
Max Load | Size(LxWxH) |
---|---|---|---|---|
SR-2108HT(WP)-EU |
AC 100-240V |
Max. 4x1.5A |
660W@110V |
180.5x73.6x38mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2108HTWP-EU-Instruction.pdf
