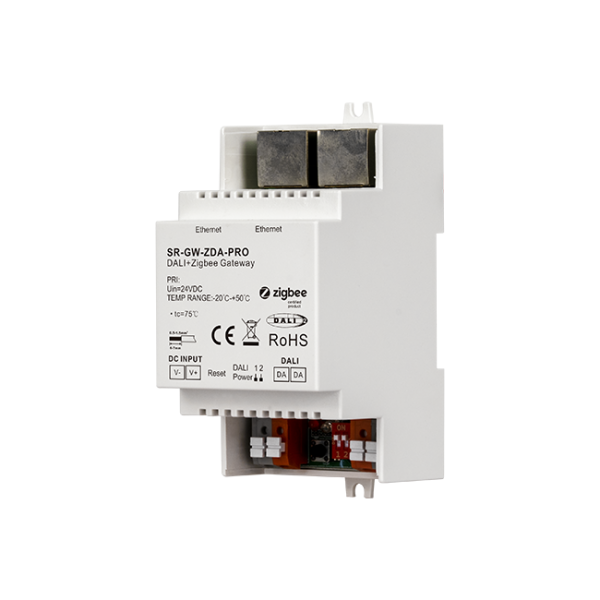

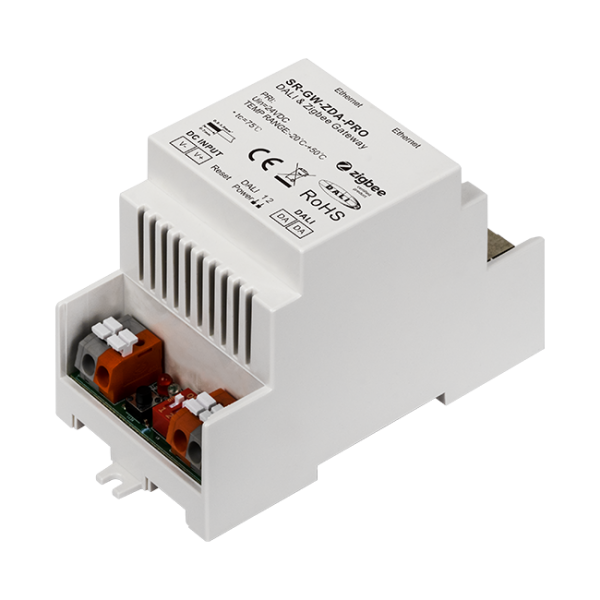

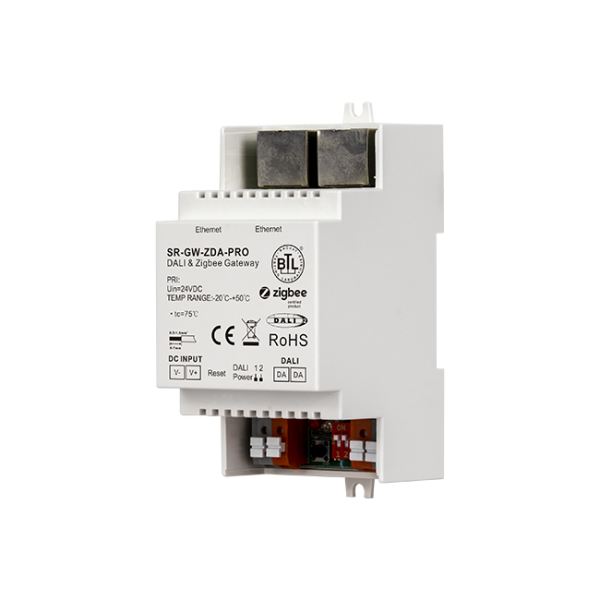

This DIN Rail Ethernet Gateway supports DALI-2 and Zigbee 3.0, offering full configuration for DALI-2 control devices including panels and sensors. It manages up to 64 control gears with DALI addressing, grouping, and scene configuration. A built-in 250mA DALI power supply eliminates extra wiring. The gateway enables cross-protocol interaction between DALI and Zigbee devices, unified control via one app, Matter bridging for Apple Home/Google Home/Alexa, plus built-in battery, RTC, MQTT, BACnet, and a 5-year warranty.
Key Features
• Comprehensive DALI-2 Support, Full configuration capabilities for DALI-2 control devices, including panels and sensors (Occupancy/Light sensors)
• Supports all Zigbee 3.0 standard device types
• Supports DALI addressing, grouping and scene configuration for max. 64 control gears (DALI-1 and DALI-2)
• Built-in 250mA DALI PS, no extra wiring required
• Cross-Protocol Interaction, Support direct mutual control between DALI and Zigbee devices
• Seamless Zigbee & DALI Integration, Manage both DALI and Zigbee devices within a single APP, enabling unified control for wired and wireless systems.
• Matter Bridge Ready, Acts as a Matter bridge, making your DALI and Zigbee assets instantly compatible with Apple Home, Google Home, and Amazon Alexa.
• Built-in battery, built-in RTC, supports timer task configuration
• Built-in support for MQTT and BACnet, ensuring effortless integration into third-party BMSand IoT platforms.
• 5 years warranty
Specifications
While built-in DALI PS enabled
|
Input Voltage
|
Number of
DALI Channel
|
Output Voltage
|
Output Current
|
Ambient Temperature
| Size(LxWxH) |
| 24VDC | 1 |
12-22.5VDC
|
Guaranteed supply current: 230mA
Max. supply current: 250mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|
While built-in DALI PS disabled
|
Input Voltage
|
Number of
DALI Channel
|
DALI Current Consumption
|
Ambient Temperature
| Size(LxWxH) |
| 24VDC | 1 |
Max. 2mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|
Product Dimension

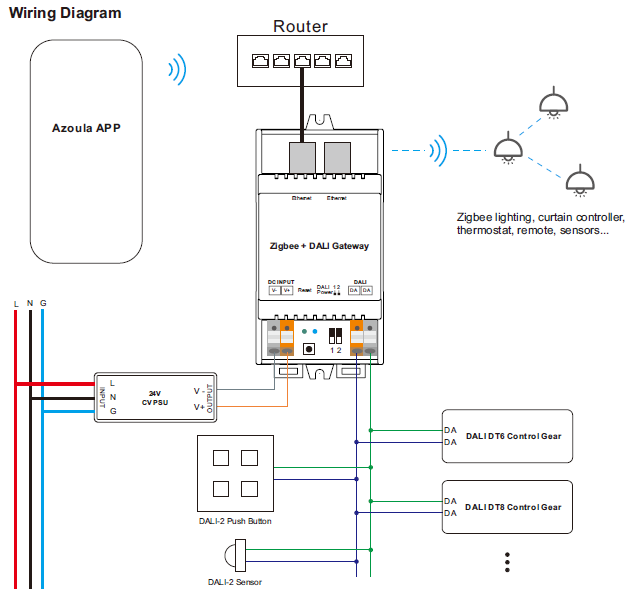

Wiring Diagram

Download Center
To know further details of this product, please download the following user manual.
SR-GW-ZDA-PRO User Manual
