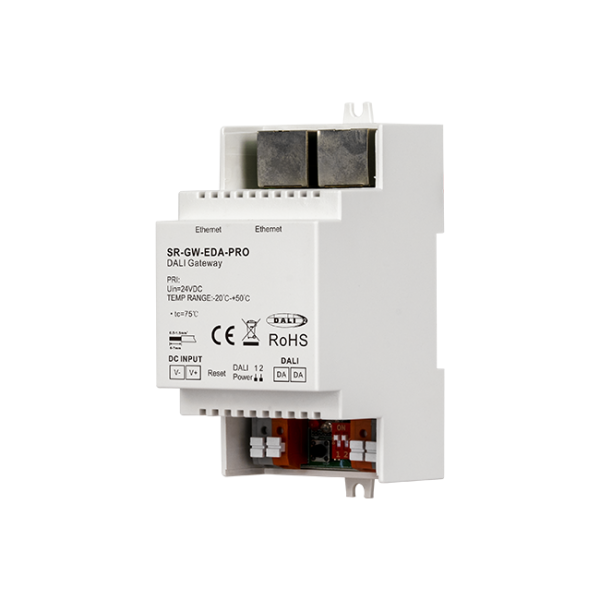

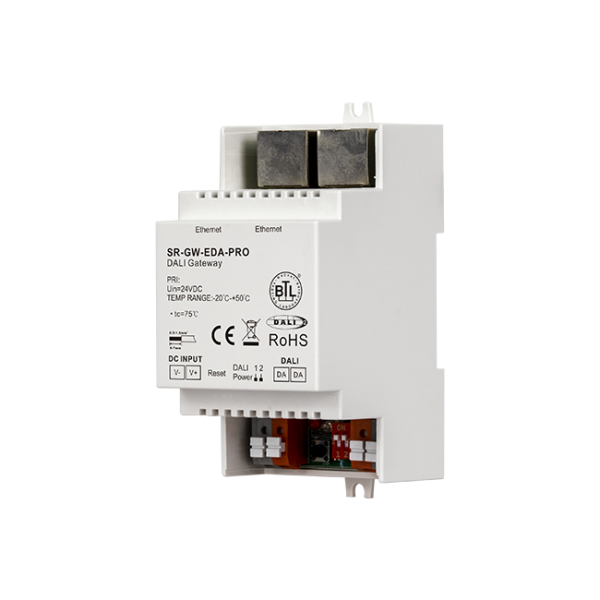

This DIN Rail Ethernet DALI Gateway supports DT6, DT8 Tc, DT8 XY, and DT8 RGBWA device types. It enables addressing, grouping, and scene configuration for up to 64 control gears (DALI-1 and DALI-2). A built-in 250mA DALI power supply eliminates extra wiring. The gateway connects easily to a network via Ethernet and is configured using the DALI Center PC application. It includes a built-in battery and RTC for timer tasks, monitors DALI bus data, has an IP20 rating, and offers a 5-year warranty.
Key Features
• Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
• Supports addressing, grouping and scene configuration for max. 64 control gears (DALI-1 and DALI-2)
• Built-in 250mA DALI PS, no extra wiring required
• Easy connect to a network through Ethernet connection
• Easy & quick configuration through DALI Center PC application
• Built-in battery, built-in RTC, supports timer task configuration
• Can monitor DALI bus data
• Waterproof grade: IP20
• 5 years warranty
Specifications
While built-in DALI PS enabled
|
Input Voltage
|
Number of
DALI Channel
|
Output Voltage
|
Output Current
|
Ambient Temperature
| Size(LxWxH) |
|---|
| 24VDC | 1 |
12-22.5VDC
|
Guaranteed supply current: 230mA
Max. supply current: 250mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|
|---|
While built-in DALI PS disabled
|
Input Voltage
|
Number of
DALI Channel
|
DALI Current
Consumption
|
Ambient Temperature
| Size(LxWxH) |
|---|
| 24VDC | 1 |
Max. 2mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|
|---|
Product Dimension

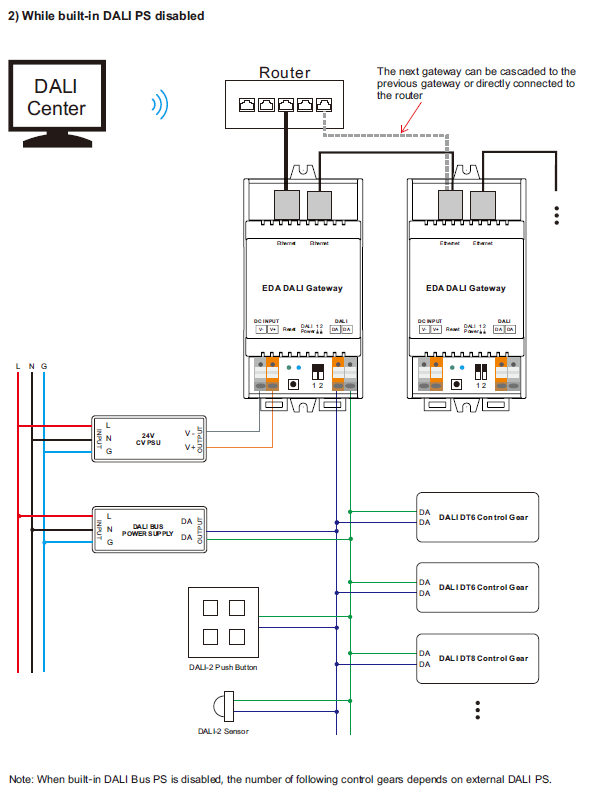

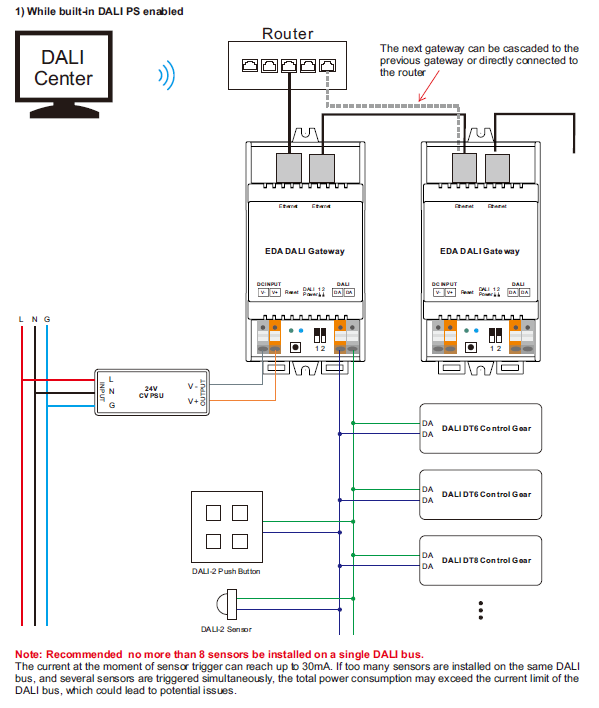

Wiring Diagram
