Product Description

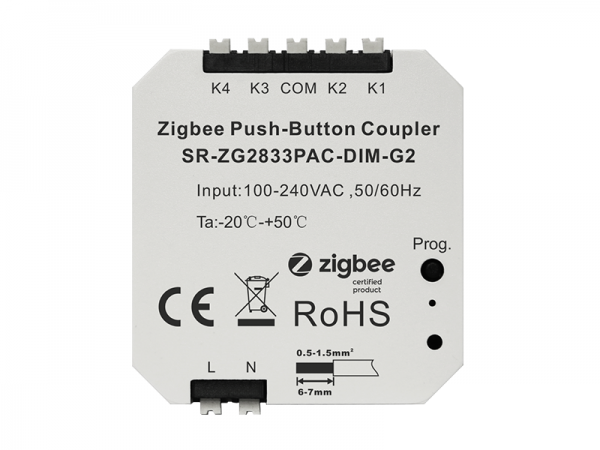

The 2-group Zigbee push-button coupler is a 4-channel push-button interface for simple wall/flush type box installation. You can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that communicates with Zigbee light device that supports Green Power feature. The coupler adopts AC100-240V power input to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible devices.
It enables to learn and control 2 groups of Zigbee light devices that supports Green Power feature with 4 push buttons.
• Communicates with Zigbee light device that supports Green Power feature
• 4-channel push-button interface for simple wall/flush type box installation
• With AC100-240V power input to power a built-in transmitter
• Compatible with Zigbee Green Power and existing switches, irrespective of the manufacturer
• Sends wireless radio signals that are used to remotely control compatible devices
• Enables to learn and control CCT Zigbee light devices that supports Green Power feature with 4 push buttons
Specifications
| Part No. |
Transmission Range |
Radio Frequency |
Power Supply |
Power Consumption | Number of Push Buttons |
|---|---|---|---|---|---|
|
SR-ZG2833PAC-DIM-G2 |
10-30m |
2.4GHz |
100-240VAC |
Less than 0.5W | 4 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG2833PAC-DIM-G2-Instruction.pdf
