Product Description

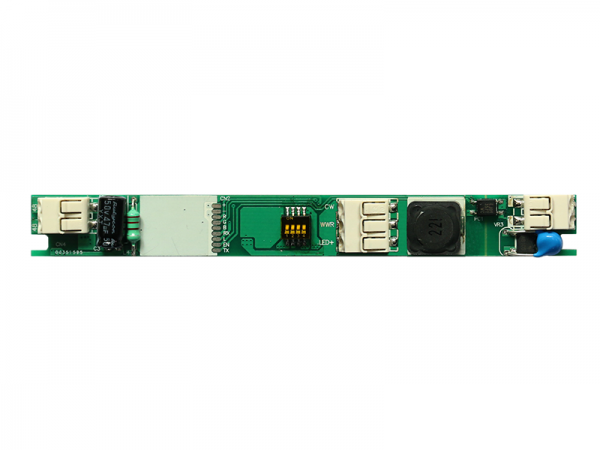

With super-slim design, this DALI DT8 tunable white LED controller for magnet track light is specially devised for magnet track light and linear lighting. Magnet absorption installation application ensures no high frequency interference sound. This controller has DC48V input, with max. output power 30W total. Equipped with 2 channels 100-700mA constant current output, dips are used to select multi operation current. This device has deep and smooth dimming to 0.1%, without flicker. It is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. With built-in DALI-2 interface, this DALI DT8 device controls Warm White and Cool White output via a single DALI address. Besides, it enables Dimming and Color Temperature Adjustment, and supports DT8 device commands, compatible with DALI masters that support DT8 commands. This controller can be configurated via DALI master USB interface. Its waterproof grade is IP20, with 5-year warranty.
Key Features
• Super slim design DALI DT8 tunable white LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 30W total
• 2 channels 100-700mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• DALI DT8 device to control Warm White and Cool White output via a single DALI address
• Enables Dimming and Color Temperature Adjustment
• Color control as defined in the DALI specification for device type 8, Color Type Tc.
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Waterproof grade: IP20
• 5 years warranty
