DALI Single Color Touch Controller SR-2300TS-DIM-EU-AC

This DALI Single Color Touch Sensitive Controller has glass interface, and both white and black are available. This control complies to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation. Besides, this device enables to control 4 DALI groups and 3 DALI scenes, set start DALI group number and start DALI scene number to be controlled by rotary switches, and control all devices on DALI line via broadcast.

Key Features

• Touch sensitive.
• Glass interface (white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.

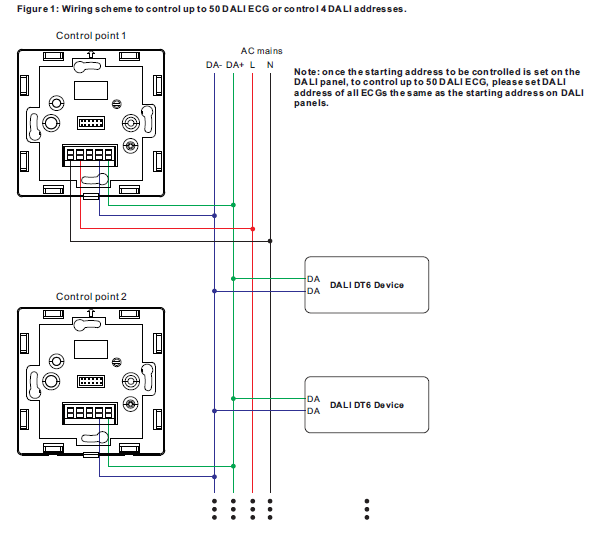

• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs
• Powered by DALI bus while not connected to AC mains

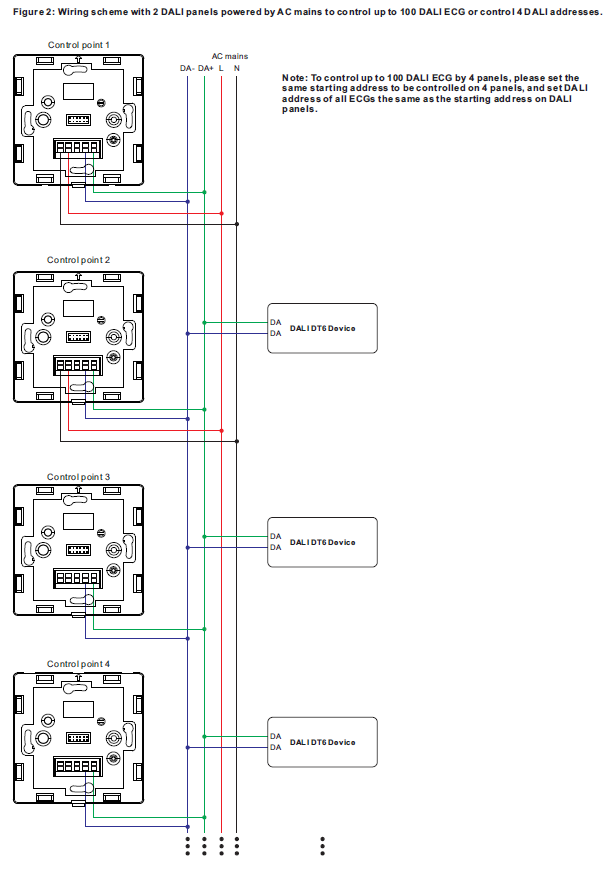

• Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels (2 by AC mains, 2 by DALI bus)
• 4 light zones are available for switch, dimming control, each zone can control 1 DALI address.

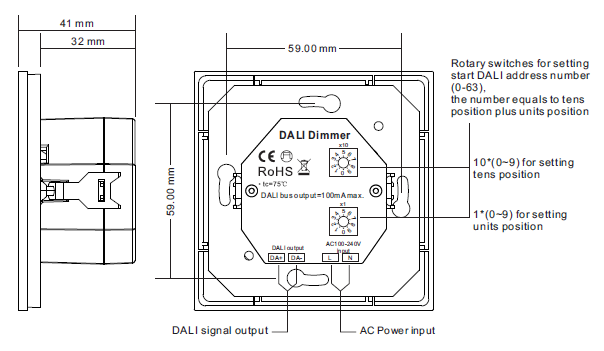

• Enable to set start DALI address number (0-63) for the 1 zone by rotary switches on the back.
• Enable to save 3 scenes
