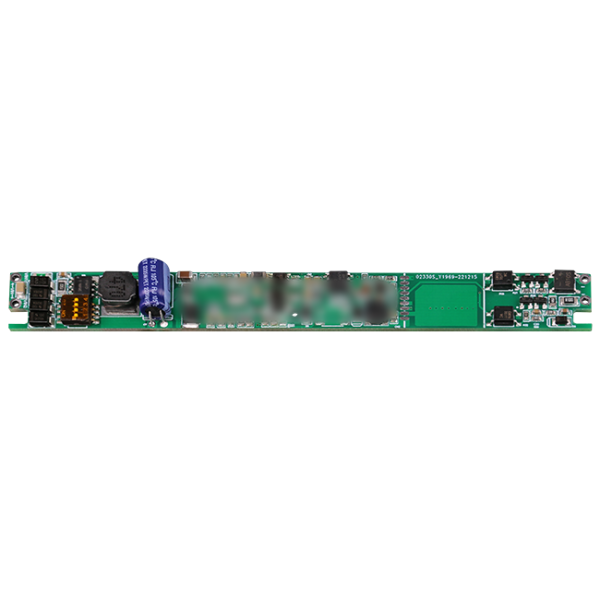

The DALI DT8 LED driver is a super-slim, highly efficient solution designed specifically for magnet track lighting and linear lighting applications. With a magnetic absorption installation method, it ensures seamless integration and eliminates high-frequency interference sounds. This controller operates with a DC48V input and provides a maximum output power of 28W, featuring two channels with a constant current output range of 100-700mA. The current is easily adjustable via dipswitches for multi-operation settings. It supports deep and smooth dimming down to 0.1%, offering flicker-free performance. Compliant with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-209 standards, the device integrates effortlessly with all DALI systems in the market. It also features a built-in DALI-2 interface for enhanced functionality. Designed with a waterproof rating of IP20, this LED controller is ideal for a variety of lighting environments and comes with a 5-year warranty for reliable performance. With an input voltage of 48VDC±5% (polarity-free) and an input current of 0.65A at full load, it delivers exceptional power efficiency and versatility.
Key Features
• Super slim design DALI DT8 LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 28W total
• 2 channels 100-700mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-209.
• Built-in DALI-2 interface, DALI DT8 device
• Match all DALI systems in the market
• Waterproof grade:IP20
• 5 years warranty
