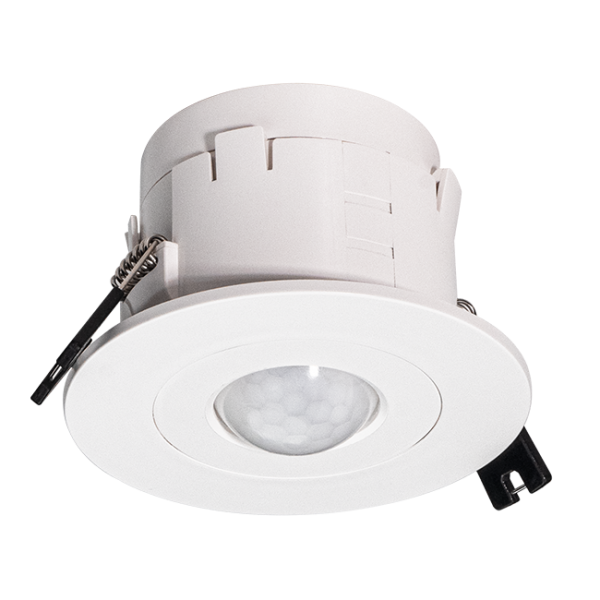

Ceiling Mounted DALI PIR Sensor with Daylight Harvesting SR-DA9030D-PIR

The DALI-2 Ceiling mount DALI PIR Recessed Sensor is DALI-2 compliant device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The DALI-2 Ceiling Mounted DALI PIR Recessed Sensor can work with Normal DALI-2 drivers(Directly form up a system which no DALI Master required) or integrated to normal DALI System(Using DALI Master to do the configuration). The DALI-2 Ceiling mount DALI PIR Recessed Sensor supports 2 instances standardized according to DALI: Motion detector instance (303) for motion detection and Light sensor instance (304) for light measurement. It is designed to be used in conjunction with a DALI-2 compliant central control unit. Each instance can be configured individually.

Key Features

• Low/High-end trimming
• Daylight harvesting
• Motion detection
• Tri-level Dimming
• Motion sensor instance type 3 (303)
• Light sensor instance type 4 (304)
• Autonomous sensor-based control
