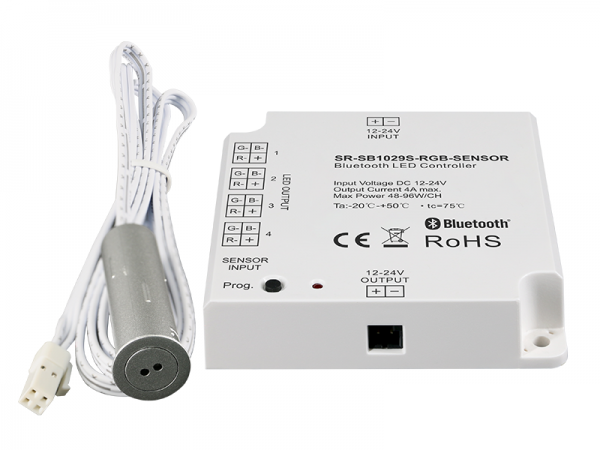

- Bluetooth+Sensor RGB LED Controller SR-SB1029S-RGB-Sensor
Product Description
• Bluetooth+Sensor RGB LED controller, radio frequency: 2.4GHz
• Super slim design, plug and play, easy to use
• 4 channels RGB LED outputs, controlled simultaneously
• Enables to control ON/OFF, light intensity, RGB color of connected RGB LED lights
• Controlled through both smart App and remote controls, no gateway required for local control
• The controller can be configured as 4 different light types: RGB, DIM, ON/OFF using the smart APP
• Easy & quick pairing to the smart App by simply pushing the Prog. button
• Mesh network, much longer control distance, transmits received signal to neighbor devices
• Up to 30m transmission distance between every two neighbor devices
• Encrypted two-way communication, quick status feedback, safe & reliable data transmission
• Compatible with universal Bluetooth remotes, each LED controller can pair to max. 8 remotes
• Cloud control is available for remote access, works with Amazon Alexa and Google Home
• Waterproof grade: IP20
Specifications
Part No. |
Input Voltage |
Output Current |
Output Power | Size (LxWxH) |
---|---|---|---|---|
SR-SB1029S-RGB-Sensor |
12/24V |
Max.4A |
0-48/0-96W |
70x70x16mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-SB1029S-RGB-Sensor-Instruction.pdf
