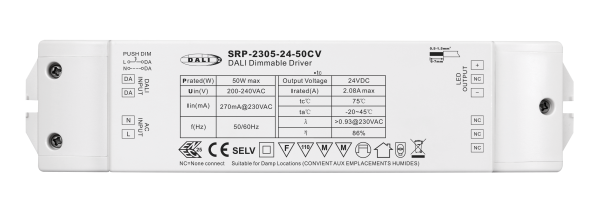

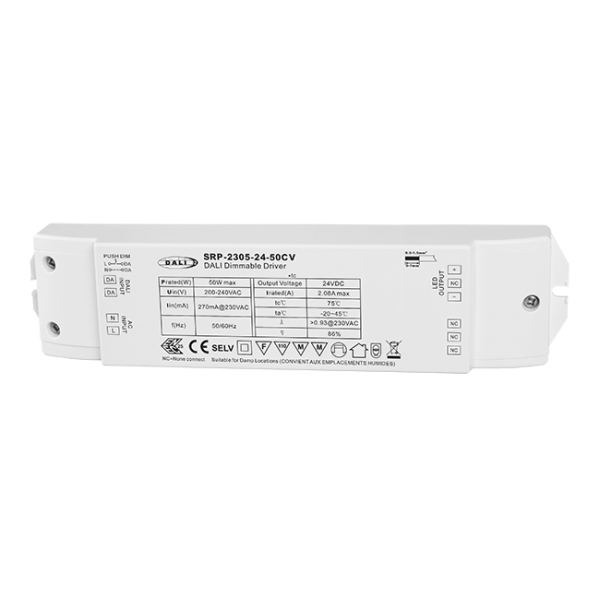

This 1-channel 24VDC constant voltage output DALI LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2. With built-in DALI-2/Push interface and class Ⅱ power supply, this DALI DT6 device has full isolated plastic case. Besides, with built-in active PFC function, its PF > 0.9 and its efficiency > 86%. This driver’s dimming method is PWM digital dimming, with standard DALI logarithmic dimming curve. Moreover, it is compliant with Safety Extra Low Voltage standard, coupled with over load, over temperature protection. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Key Features
Specifications
| Part No. | Input Voltage | Rated Power | LED Channel | DC Voltage | Max. Current | Dimension (L*W*H) |
|---|---|---|---|---|---|---|
| SRP-2305-24-50CV | 220-240VAC | Max. 50W | 1 Channel | 24V DC | 2.08A/ch max. | 210*50*32 mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-24-50CV User Manual.pdf
