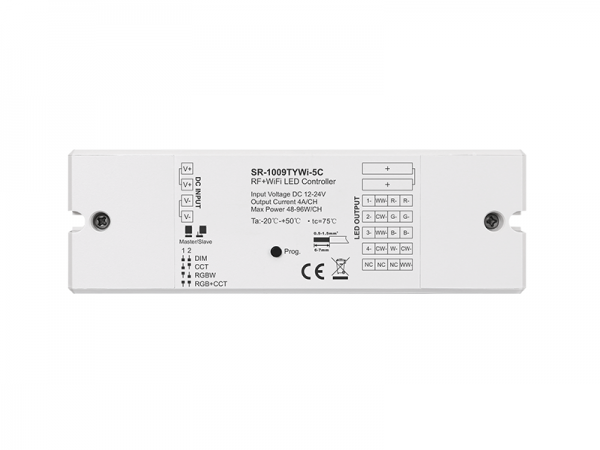

- 4 in 1 RF+WiFi LED Controller SR-1009TYWi-5C
Product Description
With 5-channel 12/24V constant voltage output and max. 4A output per channel, this RF+WiFi LED controller is compatible with universal legacy RF remotes. Its RF frequency is 434/869.6/916.5MHz, and its waterproof grade is IP20. Do not install with power applied to device, and do not expose the device to moisture.
• RF+WiFi LED controller
• 5 channels 12/24V constant voltage output
• Max. 4A output per channel
• RF frequency: 434/869.6/916.5MHz
• Compatible with universal legacy RF remotes
• Waterproof grade: IP20
• DO NOT install with power applied to device
• DO NOT expose the device to moisture
Specifications
Part No. |
Input Voltage |
Output |
Output |
Remarks |
Size (LxWxH) |
---|---|---|---|---|---|
SR-1009TYWi-5C |
12-24VDC |
5x4A |
5x(48-96)W |
Constant voltage | 145x46.5x16mm |
Function Introduction
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-1009TYWi-5C-Instruction.pdf
