Product Description

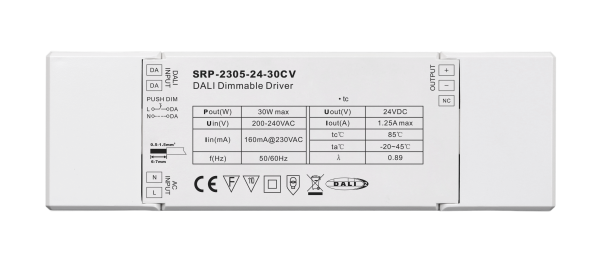

This 1-channel 24VDC constant voltage output DALI LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2. With built-in DALI-2/Push interface and class Ⅱ power supply, this DALI DT6 device has full isolated plastic case. Besides, with built-in active PFC function, its PF > 0.9 and its efficiency > 86%. This driver’s dimming method is PWM digital dimming, with standard DALI logarithmic dimming curve. Moreover, it is compliant with Safety Extra Low Voltage standard, coupled with over load, over temperature protection. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Key Features
• 1 channel 24VDC constant voltage output
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2/Push interface, DALI DT6 device
• Class Ⅱ power supply, full isolated plastic case
• Built-in active PFC function
• PF > 0.9, Efficiency > 86%
• PWM digital dimming, standard DALI logarithmic dimming curve
• Compliant with Safety Extra Low Voltage standard
• Over load, over temperature protection
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
