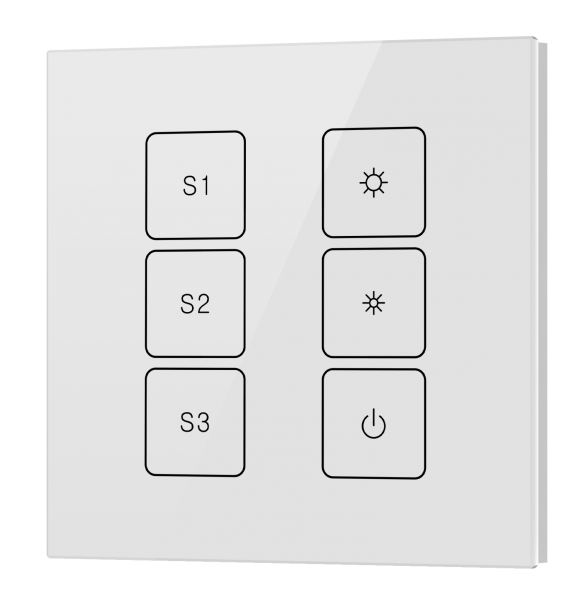

- 3-Scenes DALI Wall Switch Touch Panel SR-2422T6-DIM-G1-S3
Product Description
• This DALI touch panel controller enables Group selection commands to be sent to One Group of devices on the DALI circuit for Scene control. A rotary switch on the back is used to select Group you would like to control and set the starting Group number, and total 16 Groups (0-15) can be selected.
• Set the controlled group/scene by rotary switch
• DALI touch controller
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
Specifications
Output
|
Power Supply
|
Operation Current
|
Operating Temperature |
Relative humidity
| Dimensions |
---|---|---|---|---|---|
DALI signal
|
Supply By DALI Bus
|
4mA |
0-40℃ |
8% to 80%
|
86x86x29.1mm
|
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2422T6-DIM-G1-S3 instruction.pdf
