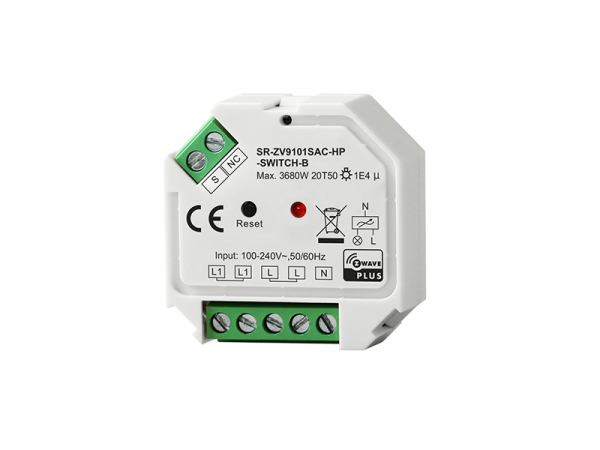

Product Description
The in-wall switch is a Z-Wave device that is used to switch ON/OFF the connected light or electrical appliances and can be controlled by other Z-Wave devices. The In-wall switch can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This device supports the SmartStart inclusion. SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within a period after the QR code being scanned or reset power of the device. Please find the QR code on the device casing.
The encryption mode that the switch supports is S2 Unauthenticated. When the switch is being included into a Z-Wave network, you can use your primary controller/gateway to enable encryption mode or disable encryption. (The primary controller/gateway shall support encryption mode configuration). The switch supports OTA and can update firmware wirelessly. In addition, the switch is equipped with Power Metering and over current protection.
Key Features
• A Z-Wave device that is used to switch ON/OFF the connected light or electrical appliances
• Can be controlled by other Z-Wave devices
• Can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications
• Makes all non-battery operated nodes within the network act as repeaters regardless of vendor to increase reliability of the network
• Supports the SmartStart inclusion
• Can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion
• No need of further action
• Can be added automatically within a period after the QR code being scanned or reset power of the device
• Supported encryption mode: S2 Unauthenticated
• Supports OTA and can update firmware wirelessly
• Is equipped with Power Metering and over current protection
Specifications
Part No. |
Input Voltage |
Output Current |
Z-Wave Frequency | Size(LxWxH) |
---|---|---|---|---|
SR-ZV9101SAC-HP-SWITCH-B |
AC100-240V |
16A max. |
868.42 MHZ (EU)/869.0 MHZ (RU)/908.42 MHZ (US)/921.42 MHz (ANZ) |
45.5x45x20.3mm |
Product Dimension

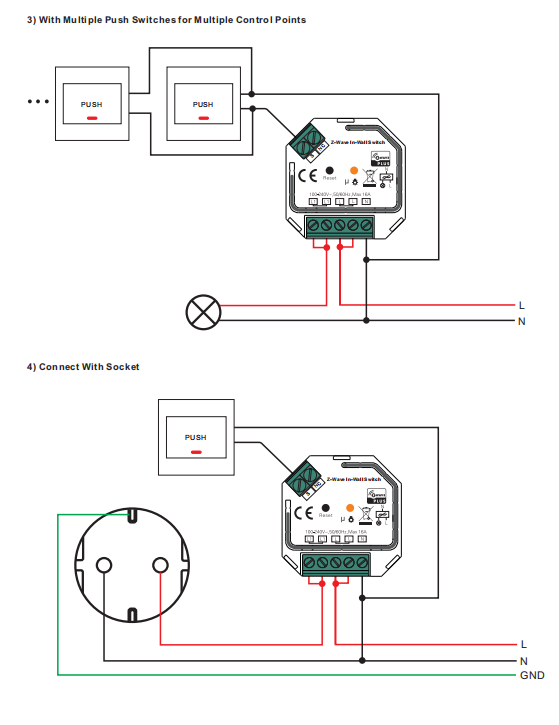

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZV9101SAC-HP-SWITCH-B-Instruction.pdf
