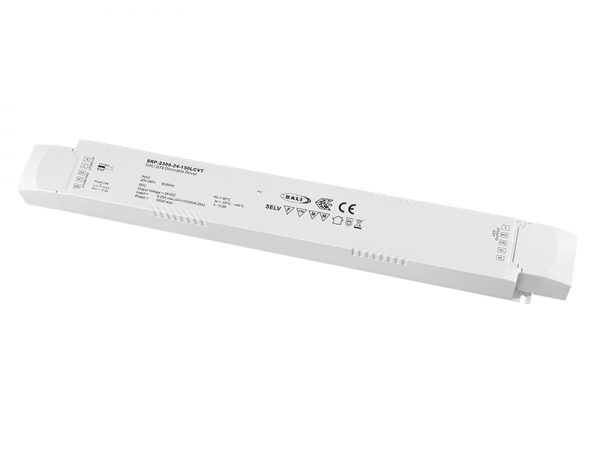

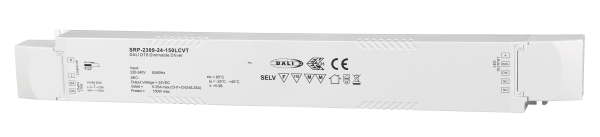

150W DALI DT8 Dimmable LED Driver SRP-2309-24-150LCVT

Product Description

With the maximum output power of 150W and 2-channel 24VDC constant voltage output, this dimmable LED driver has built-in DALI-2 interface and high power factor and efficiency. Each device is controlled via a single DALI address. PWM dimming allows it to smoothly and deeply dim to 0.1%. This device is compatible with universal DALI masters that support DT8 commands, has error report function and can support DT8 commands. Besides, this driver is suitable for indoor LED lighting applications with 5-year warranty.

Key Features

• Dimmable LED driver, max. output power 150W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 2 channels DC 24V constant voltage output
• High power factor and efficiency
• Built-in DALI interface, DALI DT8 device, each device is controlled via a single DALI address
• PWM dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• Error report function, support DALI DT8 Tc type
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty

Specifications

Part No.	Input Voltage Range	Output Current	Rated Power	Size(LxWxH)
SRP-2309-24-150LCVT	220-240V AC	Max. 6.25A	Max. 150W	365.6x43x30mm

Product Dimension

Product Dimension

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SRP-2309-24-150LCVT User Manual.pdf
