Product Description

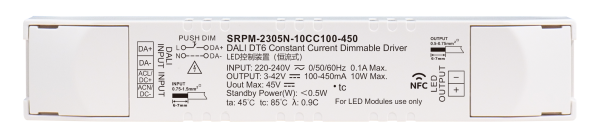

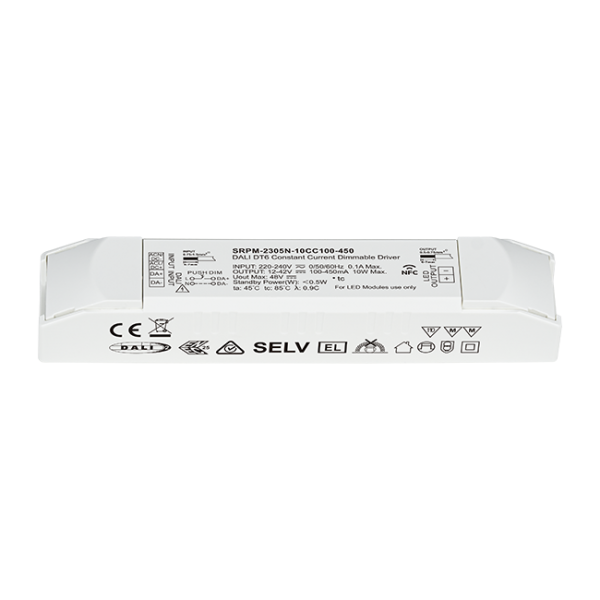

This 10W NFC programmable DALI DT6 LED Driver is DALI-2 certified and in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and compatible with universal DALI masters that support DT6 commands. The driver can be programmed with NFC programming APP or tool, the output current can be configured with 0.1mA stepping between 100-450mA, which ensures high current accuracy and helps to reduce stocks. DALI configurations such as addressing, grouping, scene setting, power on level, system fail level, fade time, fade rate etc. can also be configured through NFC. With built-in DALI-2/Push interface, this DALI DT6 device is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 10W. With Class Ⅱ power supply and full isolated plastic case, this driver can switch and dim LED lighting fixtures. It features flicker free and deep dimming to 0.01%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver. Max. output power 10W
• 100-450mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim single color LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• DALI-251/252/253 Enabled, DALI data inside
• Error report function
• LED Driver has Class A sound ratings per Energy-star regulated
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
