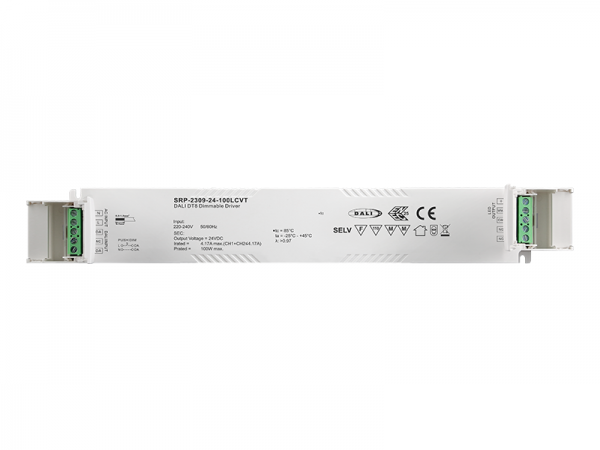

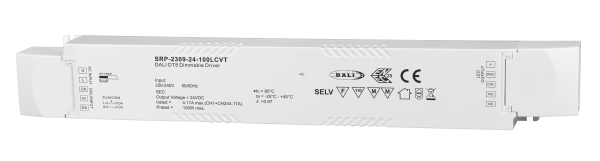

- 100W DALI DT8 Dimmable LED Driver SRP-2309-24-100LCVT
Product Description
This 100W DALI DT8 Dimmable LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, and compatible with universal DALI masters that support DT8 commands. With built-in DALI-2 interface, this DALI DT8 device is controlled via a single DALI address. Moreover, this device is equipped with 2-channel DC 24V constant voltage output and high power factor and efficiency. Its dimming method is PWM, with smooth and deep dimming to 0.1%. Besides, this driver has error report function, and supports DALI DT8 Tc type. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
• Dimmable LED driver, max. output power 100W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 2 channels DC 24V constant voltage output
• High power factor and efficiency
• Built-in DALI interface, DALI DT8 device, each device is controlled via a single DALI address
• PWM dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• Error report function, support DALI DT8 Tc type
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Specifications
Part No. |
Input Voltage |
Standby Power consumption |
Rated Power |
LED Channel |
Size (LxWxH) |
---|---|---|---|---|---|
SRP-2309-24-100LCVT |
220-240V AC |
<0.5W |
Max. 100W |
2 | 306.6*43*30mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2309-24-100LCVT-Instruction.pdf
