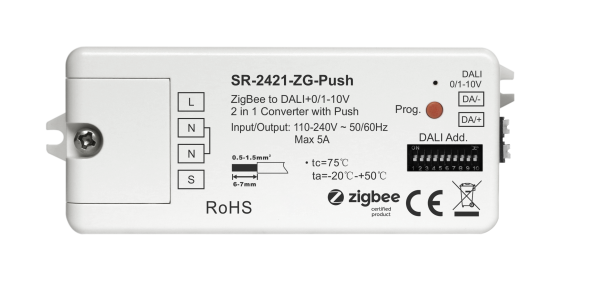

SR-2421-ZG-Push is a Zigbee DALI interface & Zigbee 0-10V/1-10V interface that receives Zigbee signal and can be controlled through universal Zigbee gateways and Zigbee remotes. This Zigbee DALI interface is designed based on Zigbee 3.0 which ensures high interoperability with other manufacturers' Zigbee systems. The controller converts the wireless signal to DALI and 0-10V/1-10V.
The Zigbee to DALI and 0-10V/1-10V controller is with flexible control options including smart APP, Zigbee remote controls. In addition, It supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.
Key Features
- Zigbee+Push to DALI+0/1-10V converter based on zigbee 3.0
- Zigbee signal input & push switch input, DALI output to DALI line or 0/1-10V signal output, 110-240VAC power input
- Can be controlled by both Zigbee signal & push switch input
- Integrates existing push switch into DALI or 0/1-10V
- Compatible with universal Zigbee gateway or hub products
- Can directly pair to a compatible ZigBee remote via Touchlink
- Compatible with universal Zigbee remotes
- Supports self-forming zigbee network without coordinator
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- DALI signal or 1-10V signal output selectable by DIP switch
- Built-in DALI bus power supply, no extra DALI bus PS required
- With max. 50mA DALI bus power current output
- To supply control current to up to 25 DALI control gears
- DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
- Color control according to DALI specifications of Device Type 8
- Color type: Tc, XY coordinates, RGBW selectable by DIP switches
- DALI address control mode or group control mode selectable by DIP switch
- Enables to select the DALI address (00-63) to be controlled by DIP switches
- Enables to select the DALI group (0-15) to be controlled by DIP switches
- Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
- Enable to control all devices on DALI line via broadcast
- Waterproof grade: IP20
Specifications
Part No. | Input Voltage | DALI Output | 0/1-10V Output | Relay Output | Dimension (mm) |
---|---|---|---|---|---|
SR-2421-ZG-Push | 110-240VAC | Max. 50mA | Max. 20mA | 5A |
95x37x20
|
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2421-ZG-PUSH User Manual
