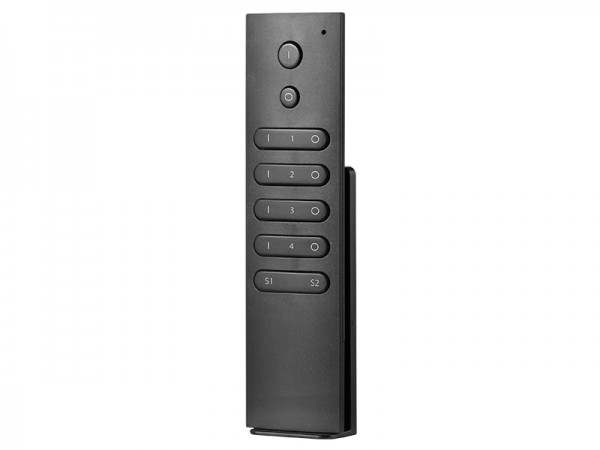

SR-ZG9001K12-DIM-Z4 is a single color ZigBee key remote controller that enables switch and dimming control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices, and each group can bind maximum 30 devices. It is a low cost ZigBee remote powered by a 3VDC button battery due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
The ZigBee key remote controller allows not only independent control of individual group by group keys but also synchronous control of all groups by All On and All Off keys. 2 scenes can be saved and recalled for each group.
Key Features
- Single color ZigBee remote controller
- Robust, reliable ZigBee PRO networking
- 2.4 GHz global operation
- Powered by a 3VDC button battery, long battery life mesh technology
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway/Coordinator products
- Compatible with universal single color ZigBee lighting devices
- Highly scalable solutions for thousands of devices
- Supports 4 groups for binding max. 30 lighting devices
- Each group can bind maximum 30 devices
- All On and All Off keys for synchronous control of all groups
- 2 scenes can be saved and recalled for each group
- With magnet bracket, the remote is easy to fasten
