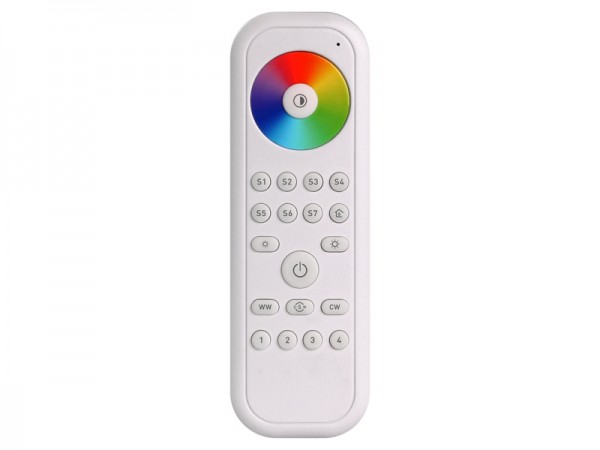

- Dim CCT RGB 3 in 1 ZigBee Remote SR-ZG2868
SR-ZG2868 is a Dim CCT RGB 3 in 1 zigbee key remote controller that enables switch, dimming, color temperature control, RGB color control of zigbee lighting devices and works with a zigbee gateway/coordinator, it shall be added to a zigbee network and bind compatible zigbee lighting devices from zigbee controller or hub interface so that it can control the devices. This zigbee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color, tunable white, RGBW and RGB+CCT zigbee lighting devices. It is a low cost zigbee remote powered by two 3VDC button batteries due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The zigbee remote can be compatible with universal zigbee gateway/coordinator and lighting devices thanks to interoperability of products with the same zigbee Wireless standard.
The zigbee remote supports Touchlink commissioning to bind directly to a lighting device without a zigbee hub or Touchlink after the remote and device are both added to the zigbee hub network.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZG2868 | 6V(2*CR2032 battery) | 2.4GHz | 137*45*13 | key remote |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZG1029-5C | 12-24VDC | 5CH, 4A/CH | 240-480W | Constant Voltage | 59*170*29 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG2868 User Manual
