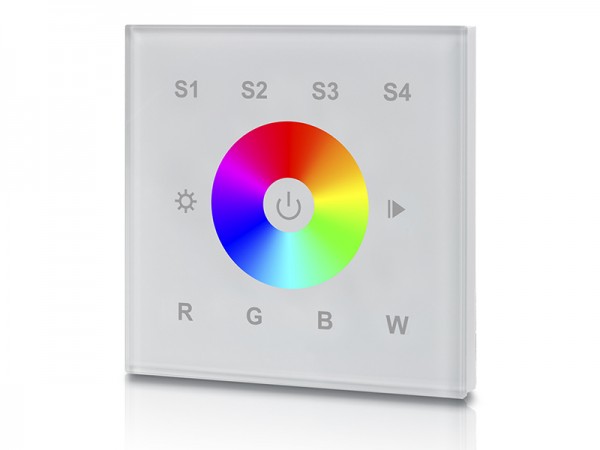

- 1 Group RGBW ZigBee Touch Remote Controller SR-ZG9001T-RGBW
SR-ZG9001T-RGBW is a RGB+W ZigBee touch remote controller that enables switch, dimming and RGB color control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee touch panel supports 1 group for binding lighting devices and enables to control RGB+W ZigBee lighting devices, and each touch panel can bind maximum 30 devices. 4 scenes (Europe size) or 3 scenes (US size) can be saved and recalled for each group. it is designed with AC100-240V power input. Ultra sensitive glass panel with full touch control enables smooth switch, dimming and RGB color adjustment operation. It enables to play built-in color running effects with adjustable speed.
The ZigBee RGBW remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
Standard Europe size and US size are both available and compatible with existing wall boxes for easy installation.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZG9001T-RGBW-EU | 100-240VAC | 2.4GHz | 86*86*29.1 | touch control |
SR-ZG9001T-RGBW-US | 100-240VAC | 2.4GHz | 75*120*29.1 | touch control |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZG9101FA-RGBW | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53.4*166*23 |
SR-ZG9101FA3-RGBW | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 53.4*166*23 |
SR-ZG9101FA7-RGBW | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 53.4*166*23 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9001T-RGBW-EU User Manual
SR-ZG9001T-RGBW-US User Manual
