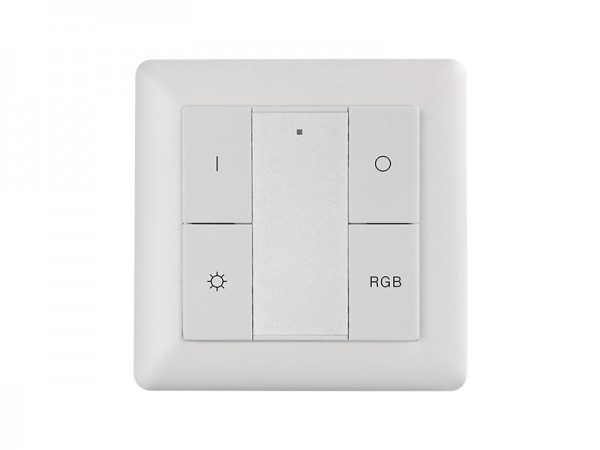

- RGB Wall Mounted ZigBee Push Button Remote SR-ZG9001K4-RGB
SR-ZG9001K4-RGB is a RGB ZigBee remote control that enables switch, dimming and RGB color control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 1 group for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices, and each group can bind maximum 30 devices. It is a low cost ZigBee remote powered by a 3VDC button battery due to robust, reliable ZigBee PRO networkking. Compatible with existing frames from Berker, Gira, Jung and Merten, the ZigBee remote is easy to be mounted on the wall.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard. It enables to adjust RGB color and brightness of RGB ZigBee lighting devices.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZG9001K4-RGB | 3VDC | 2.4GHz | 55.5*55.5*13 | / |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZG9101FA-RGBW | 12-36VDC | 3CH, 5A/CH | 180-540W | Constant Voltage | 53.4*166*23 |
SR-ZG9101FA3-RGBW | 12-36VDC | 3CH, 0.35A/CH | 12.6-37.8W | Constant Current | 53.4*166*23 |
SR-ZG9101FA7-RGBW | 12-36VDC | 3CH, 0.7A/CH | 25.2-75.6W | Constant Current | 53.4*166*23 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9001K4-RGB User Manual
