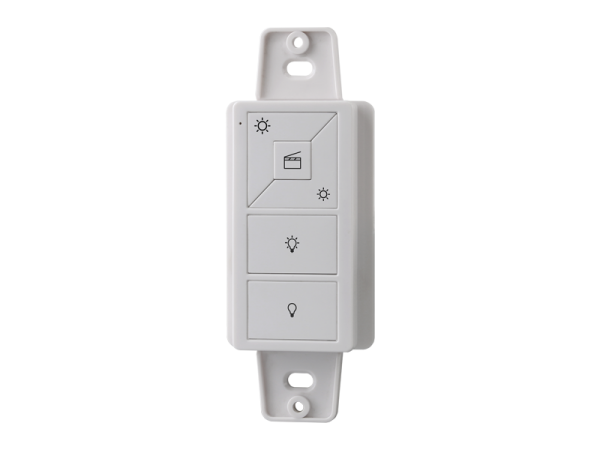

SR-ZG9001K5-DIM is a mini portable ZigBee remote controller that enables switch and dimming control of zigbee lighting devices and works with a ZigBee gateway/coordinator, it shall be added to a ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 1 group for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices. It is a low cost ZigBee remote powered by 3VDC button battery due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
1 scene can be saved and recalled for each group.
The ZigBee remote supports Touchlink commissioning to bind directly to a lighting device without a zigbee hub or Touchlink after the remote and device are both added to the zigbee hub network.
Key Features
- Mini portable single color ZigBee remote controller
- Robust, reliable ZigBee PRO networking
- 2.4 GHz global operation
- Powered by a 3VDC button battery, long battery life mesh technology
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway/Coordinator products
- Compatible with universal single color ZigBee lighting devices
- Highly scalable solutions for thousands of devices
- Supports 1 group for binding max. 30 lighting devices
- Supports Touchlink commissioning to bind directly to a lighting device without a zigbee hub
- 1 scene can be saved and recalled for each group
- With magnet bracket, the remote is easy to fasten
