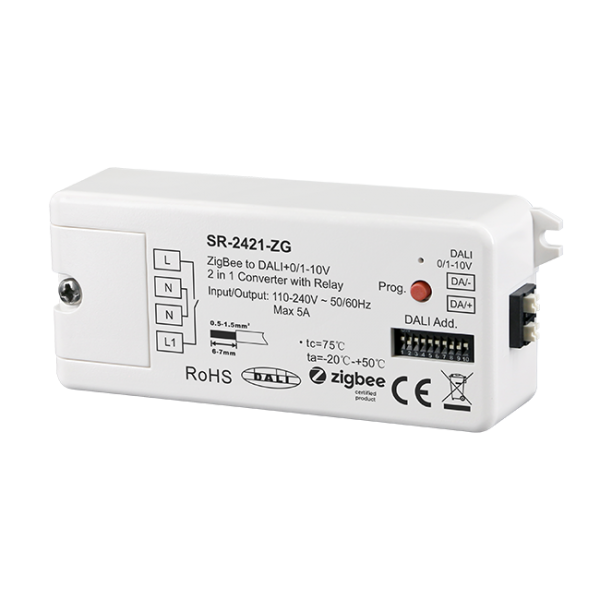

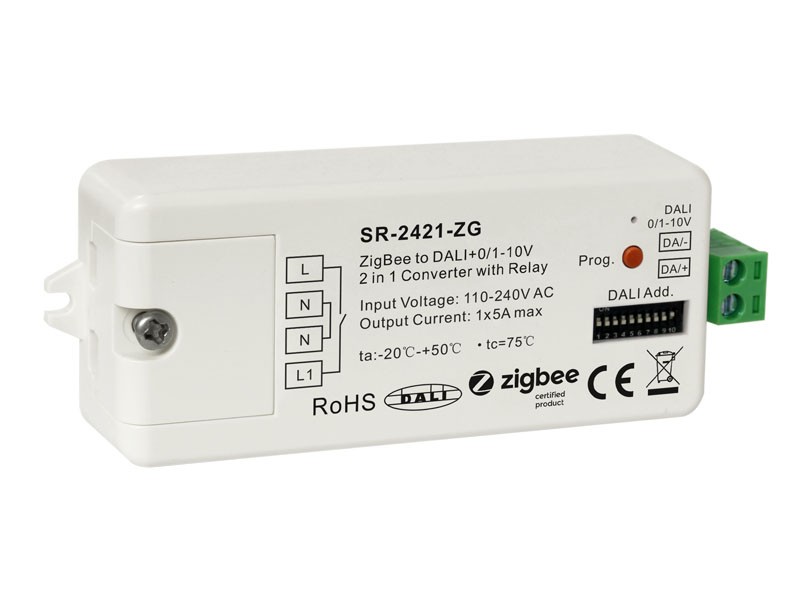

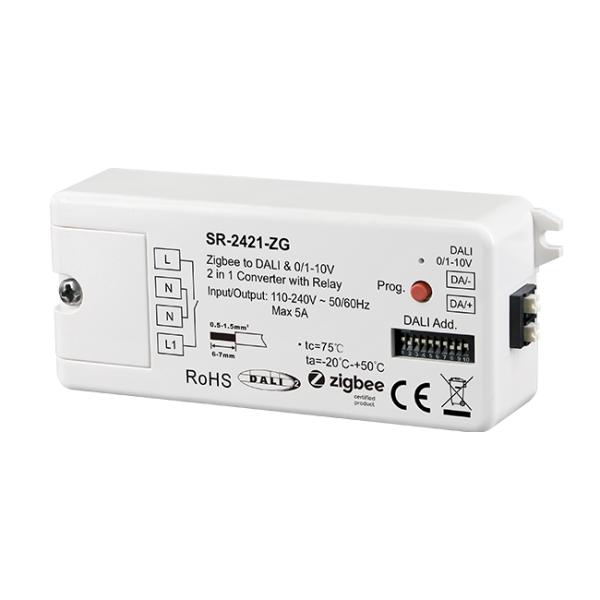

SR-2421-ZG is a Zigbee DALI interface & Zigbee 0-10V/1-10V interface that receives Zigbee signal and can be controlled through universal Zigbee gateways and Zigbee remotes. This Zigbee DALI interface is designed based on Zigbee 3.0 which ensures high interoperability with other manufacturers' Zigbee systems. The controller converts the wireless signal to DALI and 0-10V/1-10V. The DALI mode or 0-10V/1-10V mode can be selected through dip switch. Under DALI mode, It is a DALI controller powered by 100-240VAC and with 50mA DALI bus power output to control up to 25 DALI control gears. The wilress DALI controller is ultra powerful to control DALI DT6, DT8 tunable white, DT8 XY coordinate, DT8 RGBWAF control gears and can be compatible with DALI control gears from other manufacturers.
This bluetooth DALI controller enables to select and control designated DALI group/address on DALI line. Dip switches are used to set the DALI group/address number to be controlled.Total 16 groups or 64 addresses can be selected. It also can control all devices on DALI line via broadcast. It works standalone with built-in DALI power supply and no need to connect to an extra DALI PS.
Under 0-10V/1-10V mode, the controller coverts Zigbee signal to 0-10V or 1-10V signal to control the 0/1-10V dimmable loads with 0-10V or 1-10V dimming interface. In addition, it is designed with 5A relay output to switching the power of controlled control gears to save standby power consumption.
The Zigbee to DALI and 0-10V/1-10V controller is with flexible control options including smart APP, Zigbee remote controls. In addition, It supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.
Key Features
- Zigbee to DALI+0/1-10V 2 in 1 converter, Zigbee 3.0
- Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
- With max. 5A relay output and metering function
- Controlled through both smart App and Zigbee remotes
- Supports touchLink commissioning to pair to a Zigbee remote directly
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches
- DALI signal or 1-10V signal output selectable by DIP switch
- Built-in DALI bus power supply, no extra DALI bus PS required
- With max. 50mA DALI bus power current output
- To supply control current to up to 25 DALI control gears
- DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
- Color control according to DALI specifications of Device Type 8, color type: Tc, XY coordinates, RGBW selectable by DIP switches
- DALI address control mode or group control mode selectable by DIP switch
- Enables to select the DALI address (00-63) to be controlled by DIP switches
- Enables to select the DALI group (0-15) to be controlled by DIP switches
- Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
- Enable to control all devices on DALI line via broadcast
- Waterproof grade: IP20
Specifications
Part No. | Input Voltage | DALI Output | 0/1-10V Output | Relay Output | Dimension (mm) |
---|---|---|---|---|---|
SR-2421-ZG | 110-240VAC | Max. 50mA | Max. 20mA | 5A | 80x36x20.5 |
Wiring Diagram


Download Center
To know further details of this product, please download the following user manual.
SR-2421-ZG User Manual
