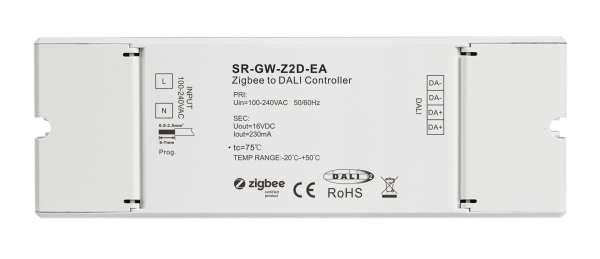

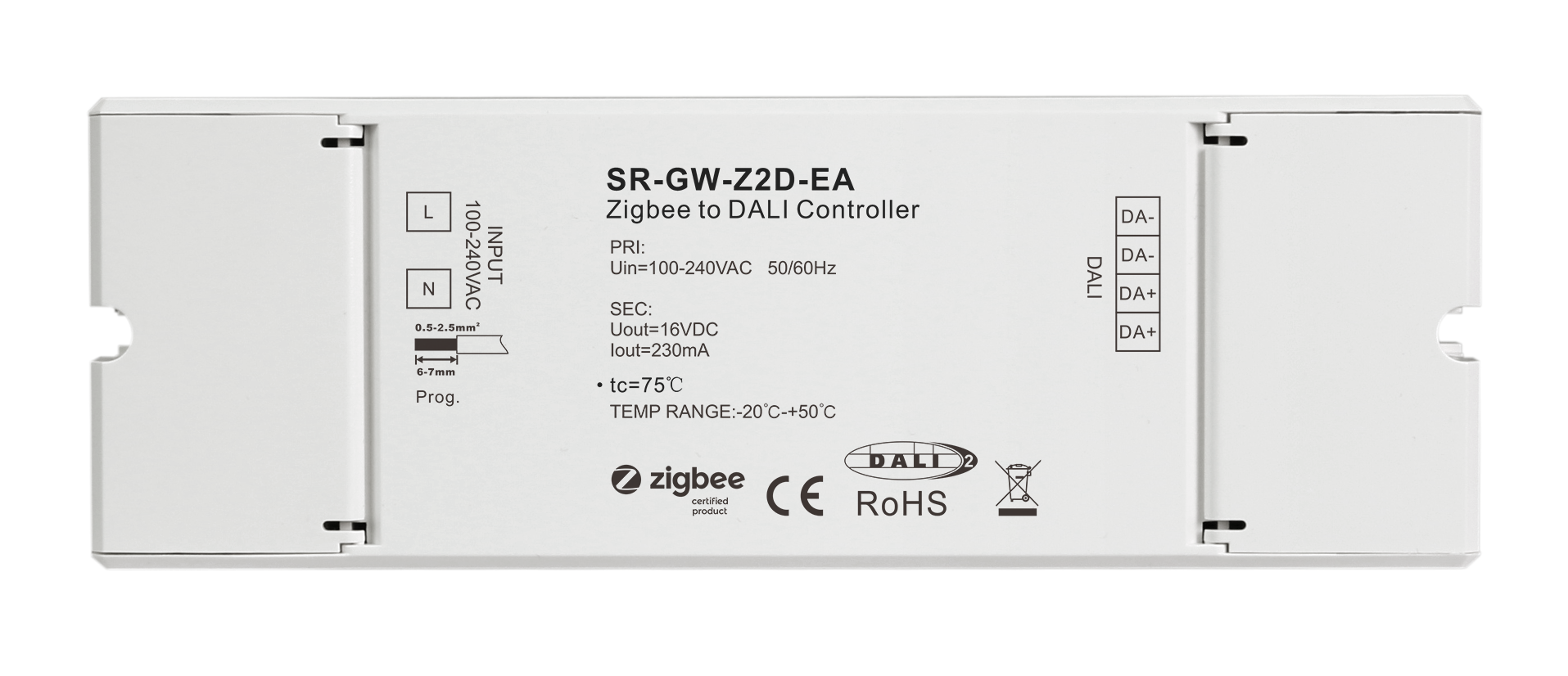

This Zigbee DALI Controller is a comprehensive bridge device designed to seamlessly integrate ZigBee wireless networks with wired DALI lighting control systems in commercial and residential applications. Supporting one DALI bus with connections for DT6/DT7/DT8 control gears, push buttons, motion sensors, light sensors, and input sensors. With its bidirectional communication capability, the device enables control of both DALI systems through ZigBee networks and ZigBee devices through DALI input devices such as push buttons, sensors, making it an ideal solution for hybrid wireless and wired control environments.
Key Features
• Zigbee-DALI bidirectional communication controller
• Can control DALI system through the Zigbee system
• Supports one DALI bus, allowing connection of DT6/DT7/DT8 control gears, push button, motion sensor, light sensor, and other input devices
• Up to 64 control gears, 10 input devices, 200 groups, and 200 scenes can be configured in the Zigbee system
• Can also control Zigbee devices through the DALI input devices connected to the gateway such as push buttons and sensors
• Waterproof grade: Ip20
• 5 years warranty
Download Center
To know further details of this product, please download the following user manual.
SR-GW-Z2D-EA User Manual
