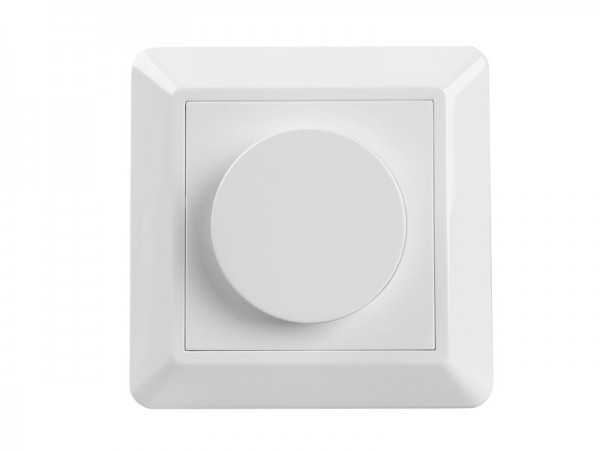

- Z-Wave & Rotary Manual Control AC Phase-Cut Dimmer SR-ZV2835RAC
The SR-ZV2835RAC is a Z-Wave Plus certified wall mounted AC phase-cut dimmer with Z-Wave control interface and rotary manual control. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel with maximum 600W output for incandescent and HV halogen loads and 300W output for dimmable LED loads. The pahse cut dimmer can operate under both 2-wire connection with no neutral lead and 3-wire connection with neutral lead. The phase cut dimmer adopts trailing edge dimming (reverse phase control). The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The dimmer also supports start-up brightness setting which solves the problem that some dimmable LED drivers can not be turned on after they are dimmed to a low level and turned off. The Z-Wave dimmer can be compatible with universal Z-Wave primary controller or gateway controller to be added to the network. It is controllable from your Z-Wave gateway interface or secondary controllers that are added to the network and associated with the dimmer.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-ZV2835RAC | 100-240VAC | 100-240VAC | 2.8A max. | 600W max. @ 230V | IncandescentHv-halogen lampsDimmable LED lamps | L83.8*W83.8*H52.4 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZV2835RAC User Manual
