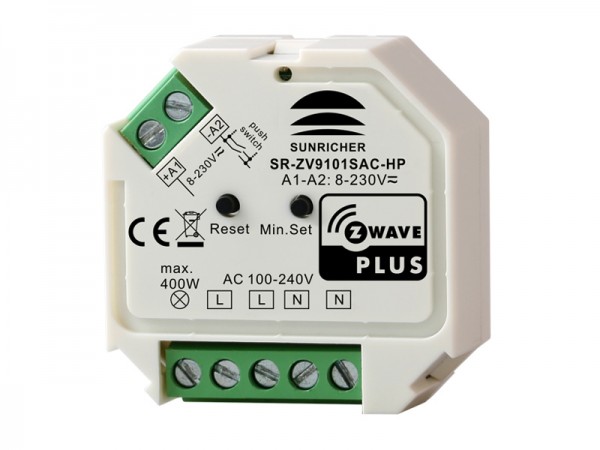

- Z-Wave AC Phase-Cut Dimmer SR-ZV9101SAC-HP
The SR-ZV9101SAC-HP is a Z-Wave Plus certified AC phase-cut in-wall dimmer with Z-Wave control interface. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The phase cut dimmer adopts leading edge dimming and trailing edge dimming, which can be configurable through Z-Wave gateway. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The Z-Wave dimmer can be compatible with universal Z-Wave primary controller or gateway controller to be added to the network. It is controllable from your Z-Wave gateway interface or secondary controllers that are added to the network and associated with the dimmer.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-ZV9101SAC-HP | 100-240VAC | 100-240VAC | 1.5A max. | 400W max. @ 220V | IncandescentHv-halogen lampsDimmable LED lamps | L45.5*W45*H20.3 |
Product Dimension
Wiring Diagram
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZV9101SAC-HP-V3-Instruction.pdf
