The DALI-2 switch supports different operating modes, it can work as a standard DALI-2 input device and send event messages to the DALI-2 control system, or directly send DALI commands to the DALI bus. The function is determined by the selection of the operating mode. Multiple operating modes can be set by the DALI-2 application controller using command SET OPERATING MODE (DTR0).
Key Features

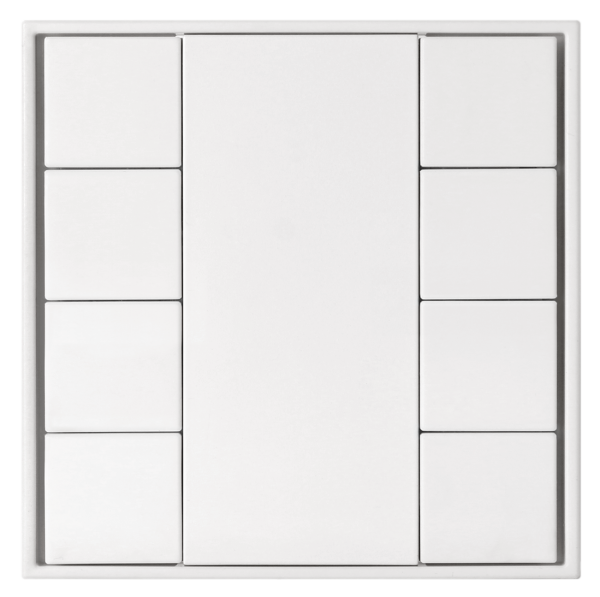

• Multi-functional 4-key push button DALI wall switch
• DALI-2 control device according to IEC62386-101, IEC62386-103, IEC62386-301
• Provides 8 push button instances
• DALI push button switch for dimming, color temperature, color and scene control
• Individual DALI Commands and operating modes can be assigned to the push buttons
• Multiple operating modes can be set by the DALI-2 controller using command SET OPERATING MODE (DTR0)
• Instance mode for sending DALI-2 push button event messages - integration in standard DALI-2 control systems
• DIM mode, directly send DALI commands to DALI bus
• CCT mode, directly send DALI commands to DALI bus
• RGBW mode, directly send DALI commands to DALI bus
• RGBWA mode, directly send DALI commands to DALI bus
• Scene mode, directly send DALI commands to DALI bus
• Multi-master capable, multiple modules can be installed on one DALI line
• Factory default setting is DALI-2 instance mode for sending DALI-2 button status event messages
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller
• Compatible with universal 55mm frames
