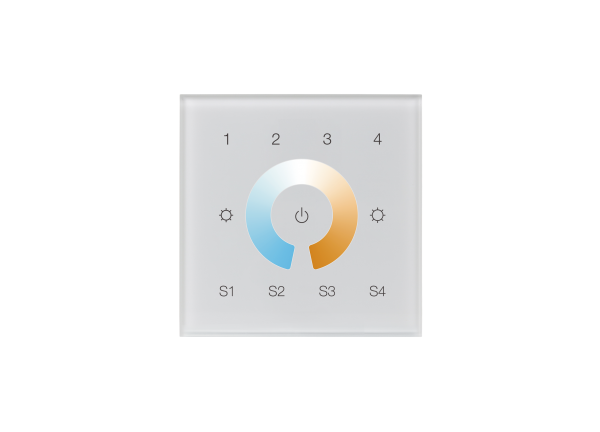

The DALI master SR-2300TR-G4-CCT-EU is a DT8 touch DALI controller which adopts high strength and ultra sensitive tempered glass panel to offer accurate and fast color temperature and brightness adjustment functions to control dual color LEDs, the LED controller complies to IEC 62386-102, IEC 62386-207, IEC 62386-209 and can be compatible with DALI products from other international corporations. The touch color wheel enables smooth and fine color temperature adjustment. The DALI master can control 4 DALI groups (EU Version) and 4 DALI scenes (EU Version). It enables to set start DALI group number (total 16 groups from 0-14) and DALI scene number (total 16 scenes from 0-14) by rotary switches on the back. In additional, it controls all devices on DALI line through broadcast. It is powered by DALI bus and no extra power supply required. Europe and US versions are both available and easy to be installed into existing standard size wall box.
This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Key Features
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation.
- Touch interface operation design, easy to use.
- With bus detective function, one channel DALI bus can install multiple controllers.
- 12-24VDC input and 100-240VAC input versions optional.
- AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
- AC input version can also be powered by DALI bus while not connected to AC mains.
- Max. 100 DALI ECG can be controlled by 4 AC input DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
- Control 4 DALI groups (EU Version) and 4 DALI scenes (EU Version)
- Supports DT8 Device Commands.
- Supports DT8 Color Type Tc.
- Compatible with DALI Masters That Support DT8 Commands.
- Easy to Select and Control Designated DALI Groups & Scenes.
- Smooth & Fine Color Temperature Adjustment.
- Enable to set start DALI group number and DALI scene number by rotary switches on the back.
- EU & US Size Available, Easy Installation Into Existing Wall Box
Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|
| SR-2300TR-G4-CCT-EU | 100-240VAC/12-24VDC | DALI Signal |
86x86x29.1
|
|---|
Product Dimension for SR-2300TR-G4-CCT-EU
Installation for SR-2300TR-G4-CCT-EU
Wiring Diagram
