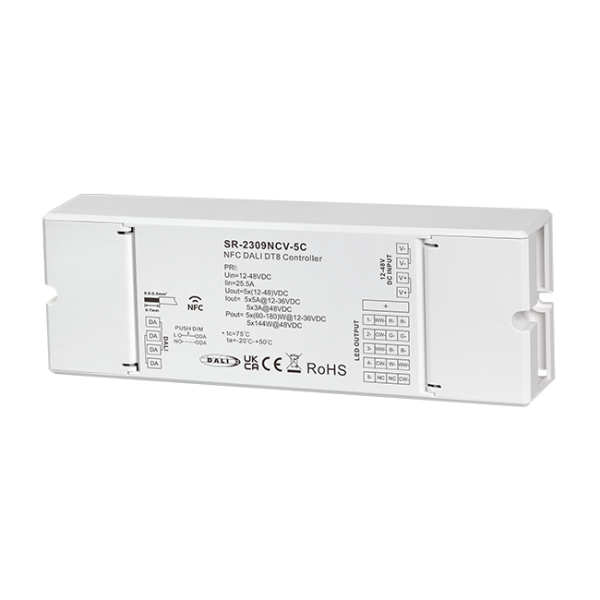

This device is a DALI-2 constant voltage control gear compliant with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and IEC 62386-209:2011 standards. It integrates multiple device types, supporting both DALI DT6 and DT8 commands for control of five PWM output channels. The unit enables configuration via an NFC tool and app, allowing parameter setting for DT6, XY, CCT, and RGBWAF modes. It also supports advanced DALI features such as device types 251, 252, 253, luminaire status, energy monitoring, and diagnostic data. Short-circuit protection is active when the dimming level exceeds 5%. In addition to DALI control, it supports push-dim mode for color temperature and RGB control, even without a DALI connection.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT6 & DT8 devices all in one
• Multi-devices integrated in one control gear
• Multiple parameters settable via NFC tool
• DT6, XY, CCT, RGBWAF device types can be set via NFC app
• 5 Channels constant voltage output
• Control of five PWM outputs via DALI device type 6 or type 8
• Color control as defined in the DALI specification device type 8
• Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
• Configuration via NFC app
• Supports 251, 252, 253, luminaire status, energy statistics and diagnostic data
• Supports short circuit protection when dimming level is above 5%
• Color temperature and RGB color control through push dim mode even if without DALI
• Waterproof grade: IP20
Download Center
To know further details of this product, please download the following user manual.
SR-2309NCV-5C User Manual
