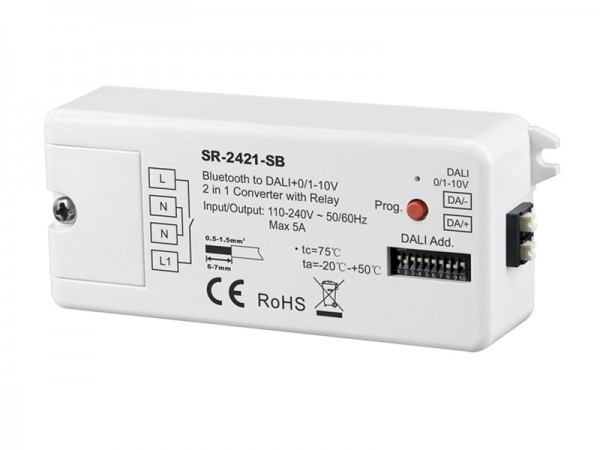

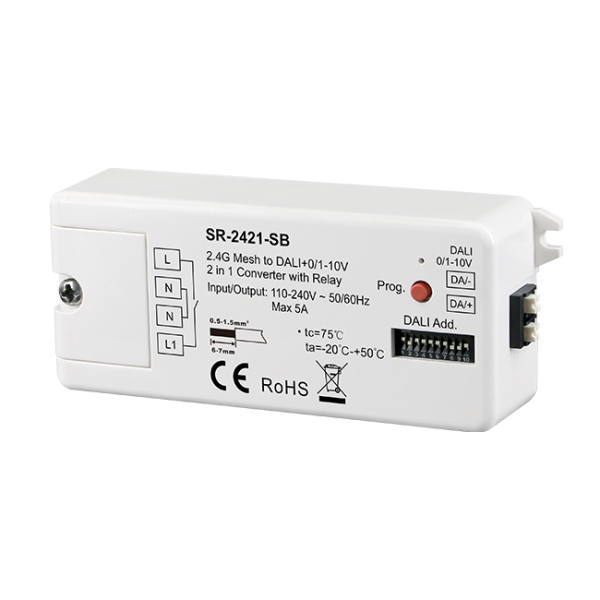

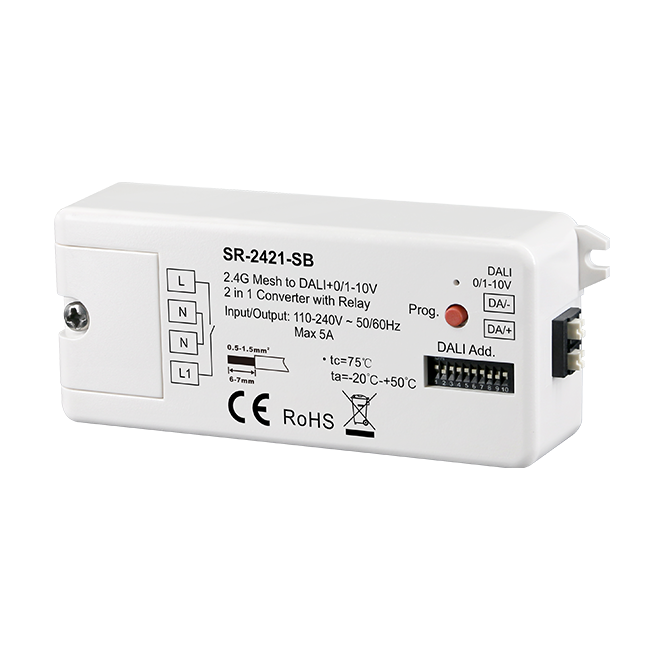

SR-2421-SB is a Bluetooth DALI interface & Bluetooth 0-10V/1-10V interface that receives bluetooth signal and can be controlled through smart APP and RF remote. The controller converts the wireless signal to DALI and 0-10V/1-10V. The DALI mode or 0-10V/1-10V mode can be selected through dip switch. Under DALI mode, It is a DALI controller powered by 110-240VAC and with 50mA DALI bus power output to control up to 25 DALI control gears. The wilress DALI controller is ultra powerful to control DALI DT6, DT8 tunable white, DT8 XY coordinate, DT8 RGBWAF control gears and can be compatible with DALI products from other international incorporations.
This bluetooth DALI controller enables to select and control designated DALI group/address on DALI line. Dip switches are used to set the DALI group/address number to be controlled.Total 16 groups or 64 addresses can be selected. It also can control all devices on DALI line via broadcast. It works standalone with built-in DALI power supply and no need to connect to an extra DALI PS.
Under 0-10V/1-10V mode, the controller coverts bluetooth signal to 0-10V or 1-10V signal to control the control gears with 0-10V or 1-10V dimming interface. In addition, it is designed with 5A relay output to switching the power of controlled control gears to save standby power consumption.
The bluetooth to DALI and 0-10V/1-10V controller is with flexible control options including bluetooth APP, RF remote. In addition, cloud control is ready for the bluetooth dimmer, which enables remote access. Thanks to the cloud, it can communicate and work with the mainstream popular smart home platforms such as Amazon Alexa, Google Assistant and Yandex Alisa, which enable users to control it through voice commands and free the hands.
Key Features
- Bluetooth+RF to DALI+0/1-10V 2 in 1 converter, bluetooth mesh network
- Bluetooth+RF signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
- With max. 5A relay output and metering function
- Controlled through both RF remote and smart App, no gateway required
- Easy & quick pairing to the smart App by simply pushing the Prog. button
- Mesh network, much longer control distance, transmits received signal to neighbor devices
- Cloud control is available for remote access, works with Amazon Alexa and Google Home
- DALI signal or 1-10V signal output selectable by DIP switch
- Built-in DALI bus power supply, no extra DALI bus PS required
- With max. 50mA DALI bus power current output
- To supply control current to up to 25 DALI control gears
- DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
- Color control according to DALI specifications of Device Type 8, color type: Tc, XY coordinates, RGBW selectable by DIP switches
- DALI address control mode or group control mode selectable by DIP switch
- Enables to select the DALI address (00-63) to be controlled by DIP switches
- Enables to select the DALI group (0-15) to be controlled by DIP switches
- Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
- Enable to control all devices on DALI line via broadcast
- Waterproof grade: IP20
Download Center
To know further details of this product, please download the following user manual.
SR-2421-SB User Manual
