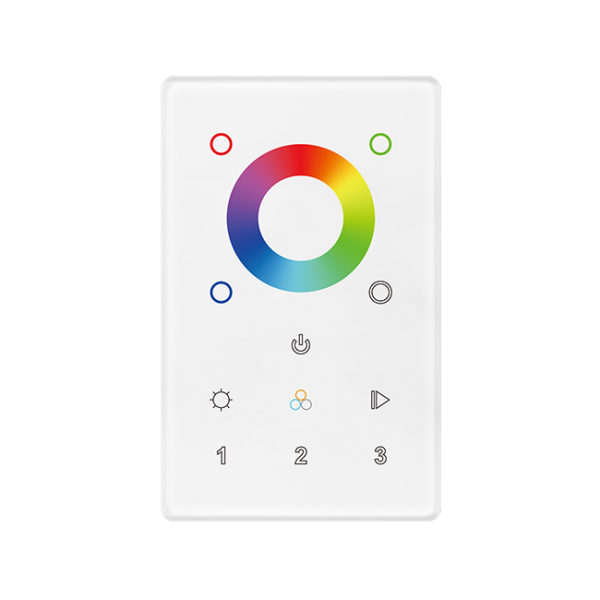

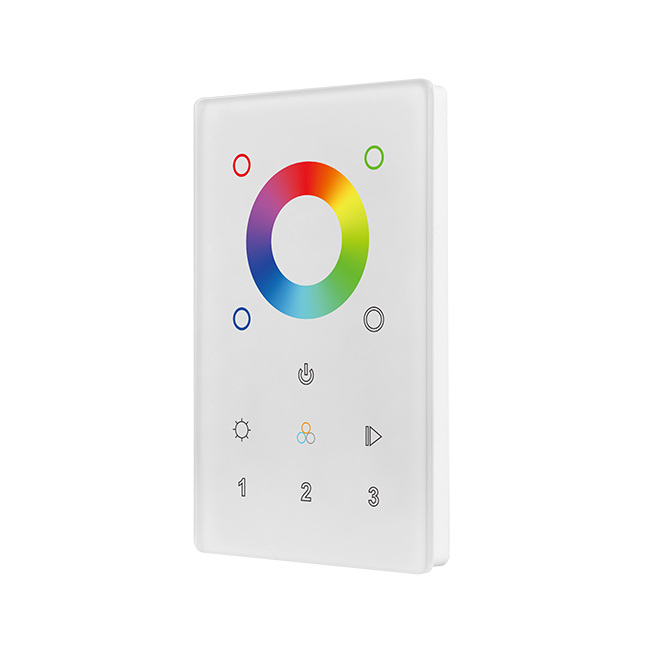

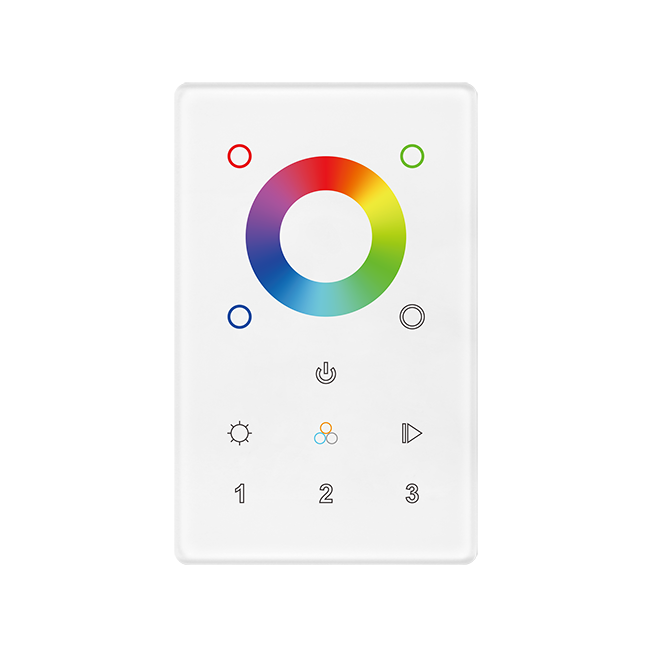

This touch-sensitive DALI control panel comes with a stylish glass interface in black or white and complies with IEC 62386-209. It features a built-in 100mA DALI power supply, powering up to 50 ECGs, and can also be powered by the DALI bus without AC mains. Up to 100 ECGs can be controlled on a single DALI line by four panels via broadcast. The panel supports DT8 devices for precise RGBWAF color control, manages up to three DALI groups with adjustable group numbers via rotary switch, and includes 10 built-in color sequences for versatile lighting applications.
Key Features
• Touch sensitive, glass interface(white & black).
• Comply to DALI standard protocol IEC 62386-209
• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
• Powered by DALI bus while not connected to AC mains.
• Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels via broadcast (2 by AC mains, 2 by DALI bus).

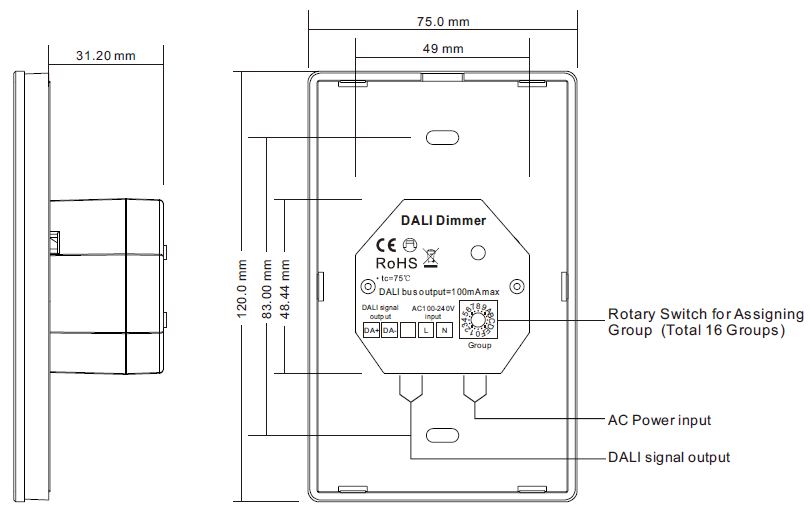

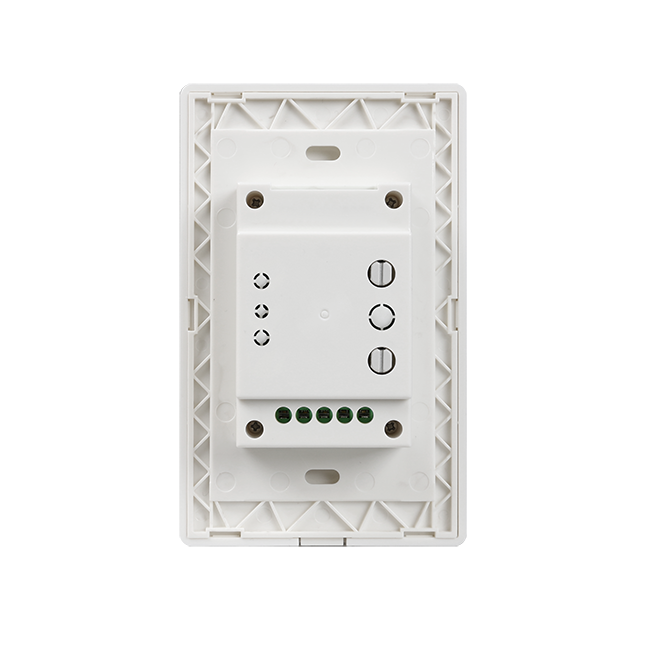

• Enable to control 3 DALI Groups, enable to set start DALI group number (0-15) by rotary switch on the back.
• Support DT8 devices, color adjustment according to DALI specifications of Device Type 8, Color Type RGBWAF.
• Each DT8 device is controlled via a single DALI address
• Built-in 10 Color Sequences
