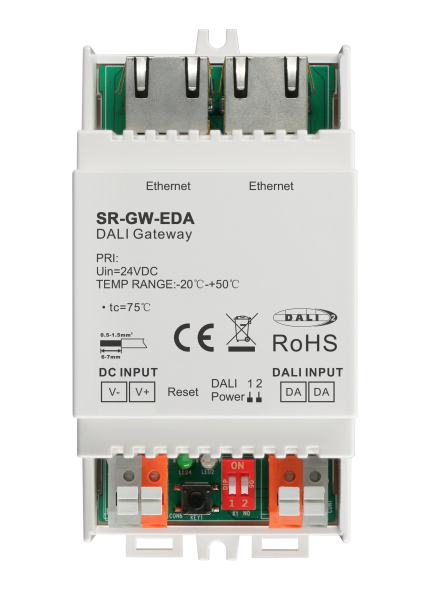

DIN Rail Ethernet (IP) DALI Gateway SR-GW-EDA

Key Features

Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
Supports addressing, grouping and scene configuration for max. 64 control gears (DALI-1 and DALI-2)
Built-in 250mA DALI PS, no extra wiring required
Easy & quick configuration through DALI Center PC application
Built-in battery, built-in RTC, supports timer task configuration
Waterproof grade: IP20
5 years warranty

Specifications

Part No.	Input Voltage	Number of DALI Channel	Output Voltage	Output Current	Ambient Temperature	Dimension (mm)
SR-GW-EDA	24VDC	1	12-22.5VDC	250mA max	-20℃ ~ +50℃	110x53x65

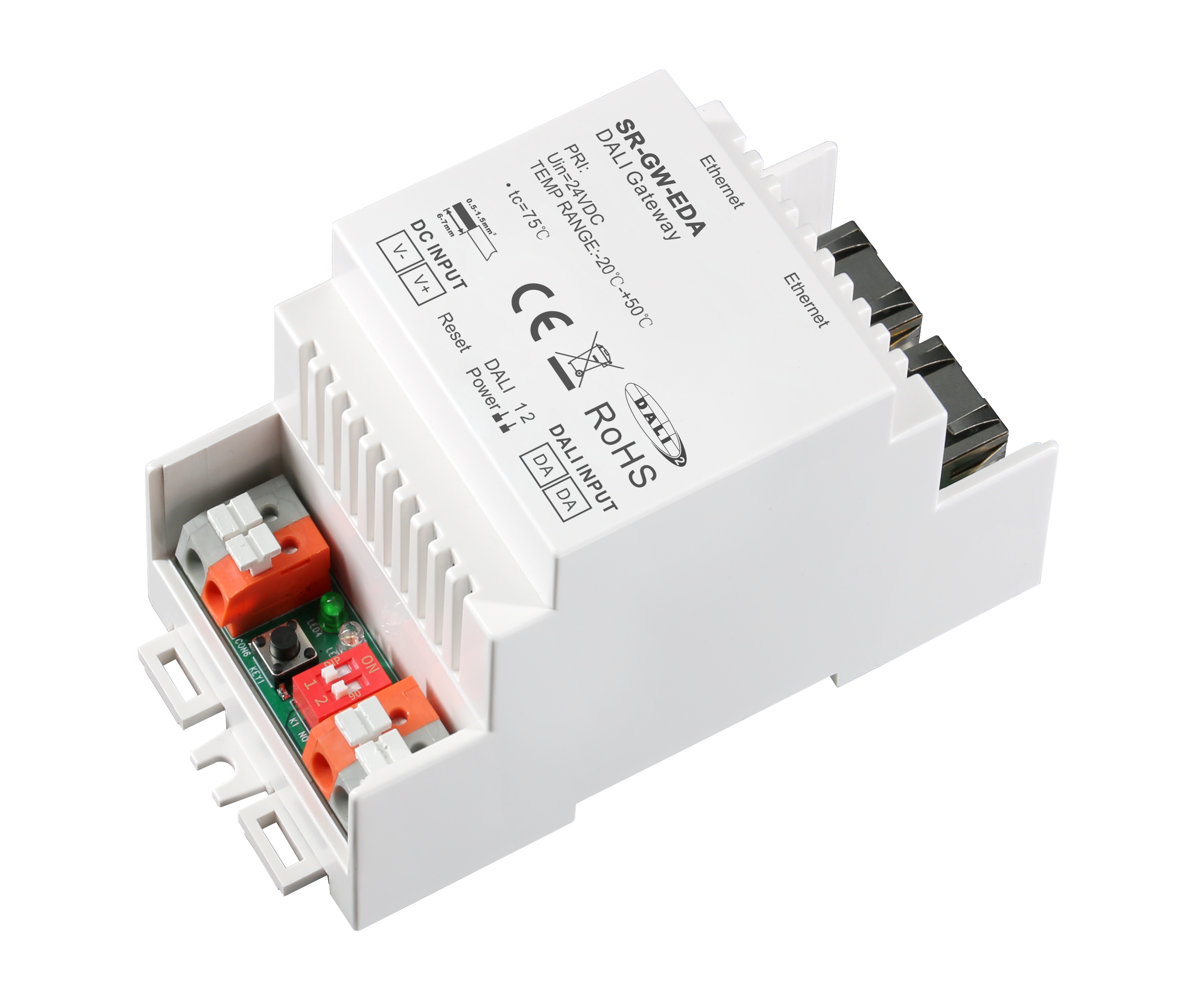

Product Dimension

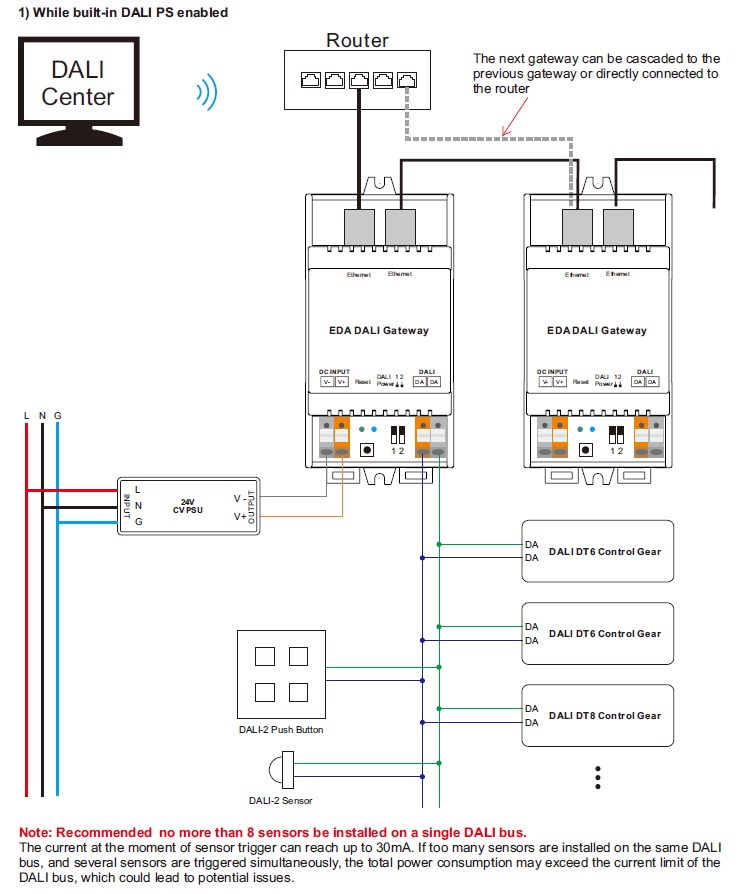

Wiring Diagram

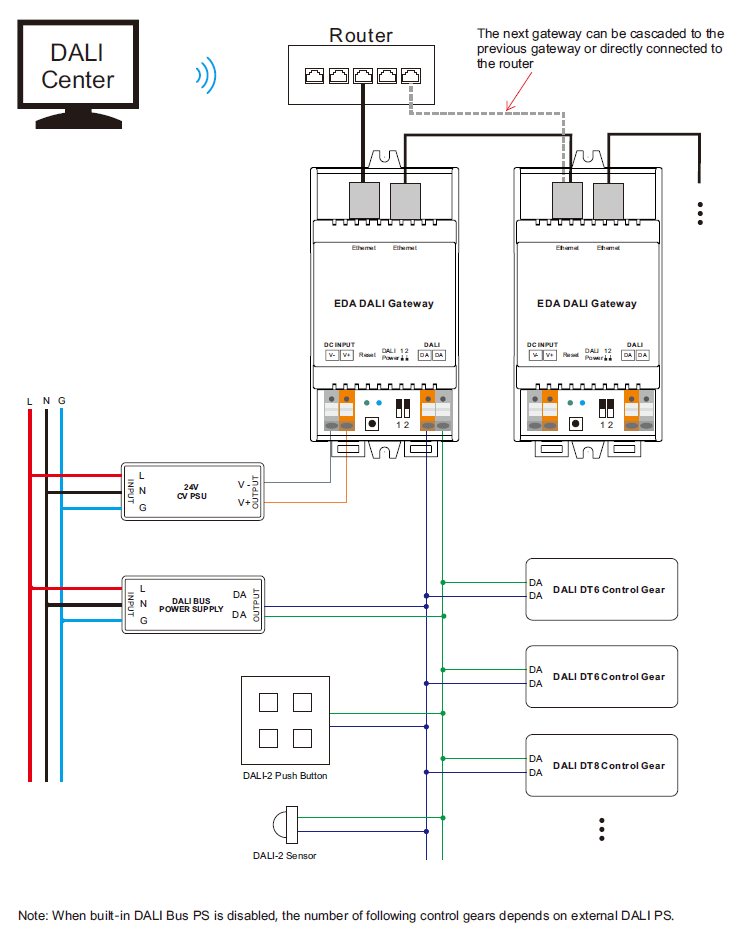

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-GW-EDA User Manual

PC Configuration Software User Manual
