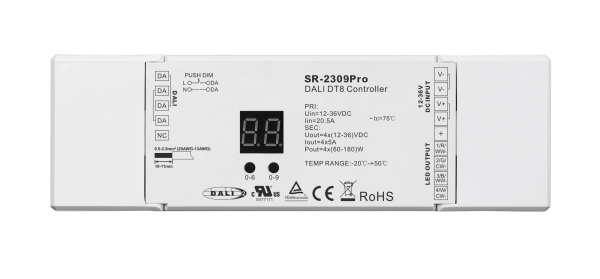

Multi-functional 6 in1 PRO 4 Channels DALI DT8 LED Controller SR-2309PRO

SR-2309PRO is a 6 in 1 professional multi-functional enabled DALI DT8 control gear which is compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. It is DALI DT8 device with built-in DALI-2 interface. Multi addresses are enabled in this control gear, which means it integrates multi DALI DT8 devices in on control gear. It can be set as single address type or multi-addresses type. The combination of device types can be configured with the buttons and display, and total 6 combinations available: Tc, RGBWAF, XY, 2*Tc, XY+W (DT6),DT6.

This control gear is designed with 4 channels PWM output, which enables to control tunable white LEDs, RGB LEDs, RGBW LEDs, RGB+tunable white LEDs depending on the device type configured. One control gear is enough to meet all requirements. This control gear is innovative to be compatible with universal DALI systems, whatever DALI DT8 device types a DALI system support, this control gear supported all DALI DT8 device types.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 4 in 1 DALI DT8 LED controller
• 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, can be set by the buttons
• DALI DT8 device to control RGBW outputs or tunable white outputs via a single DALI address
• Only 1 address required to control 4 outputs separately under primary N mode
• 4 Channels constant voltage or constant current output
• Control of four PWM outputs via DALI device type 8
• Color control as defined in the DALI specification device type 8
• Color type primary N, Tc, XY coordinate, RGBW can be set by manual set buttons
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Numeric digital display for setting DALI address manually
• Compatible with universal AC push switch
• Waterproof grade: IP20
