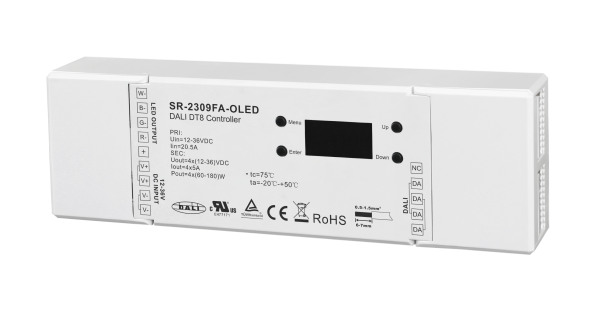

DALI Certified DT8 Dimmer with Built-in DALI Master Function SR-2309FA-OLED

SR-2309FA-OLED is the world first DALI certified DT8 dimmer with built-in DALI master function and OLED display for visible manual configuration. The LED dimmer is designed with 4 PWM outputs which are controlled via a single DALI address. DT8 color types all in one: Tc, RGBWA, XY+ Tc, RGB+ Tc can be set. It enables to address (00-63) and group (0-15) the dimmer. It enables to predefine and recall total 16 DALI scenes to the dimmer. PWM output frequency can be set from 250Hz-30KHz which ensures ultra smooth color control.

It enables to set a Min. level for dimming between this level to Max. level. Output level and DT8 color can be set manually. DALI default parameters such as fade time, fade rate, power on level, system failure level can be set .

Key Features

• DALI certified
• TUV CE certified
• DALI Certified DT8 Dimmer, 4 Channels PWM Output
• OLED Display Interface , Easy & Fast Installation
• Complies to the latest IEC 62386-209:2011 standard
• World 1st DALI Device with Built-in DALI Master Function
• No DALI Master Required
• Cost & Time Saving than DALI USB Configuration
• Enable to Address and Group
• Enable to Predefine & Recall 16 Scenes
• Up to 30KHz PWM Frequency Settable, ultra smooth color control
• DT8 Color Types All in One: Tc, RGBWA, XY+ Tc, RGB+ Tc Settable
• Enable to set a Min. Level for Dimming between This Level to Max. Level
• Enable to Set Output Level and Control DT8 Color Manually
• Enable to set Fade Time, Power On Level, System Failure Level
• Compatible with DALI System from Osram, Philips, Tridonic, Helvar, Lutron etc.
