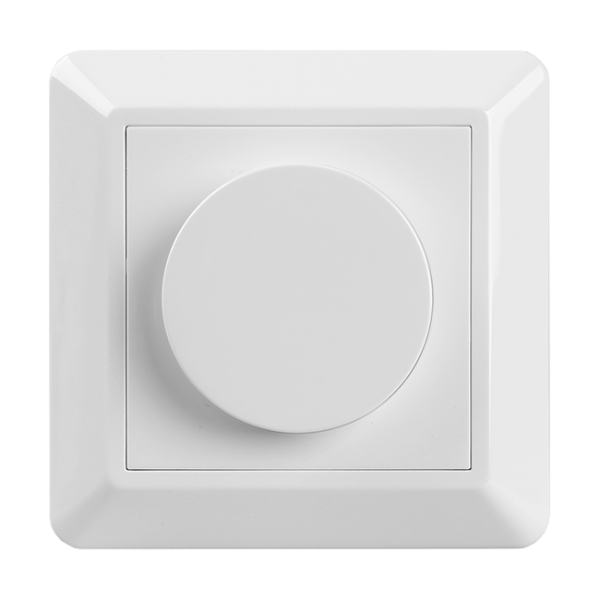

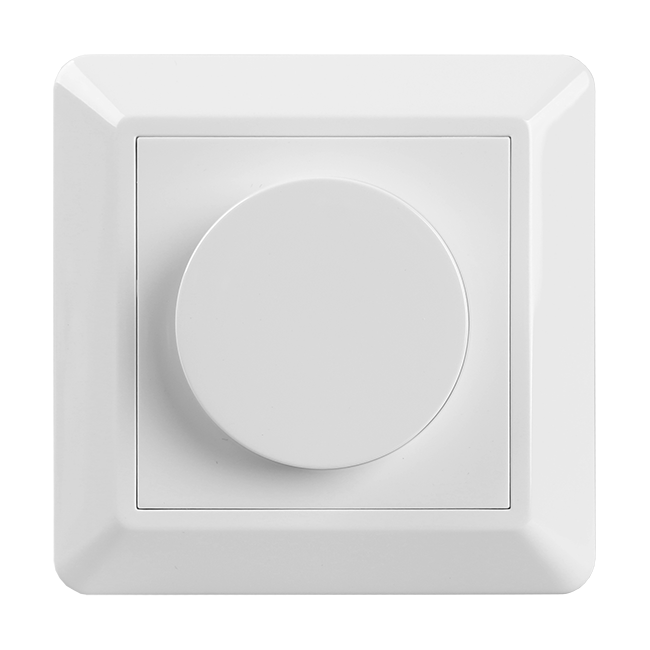

DALI-2 Rotary Switch Input Device SR-2400R-DA2

DALI-2 rotary control device with push and rotary instances for dimming, CCT, RGBW control. Supports event messaging, multiple modes, and easy DALI-2 system integration. Bus powered, no extra supply needed.

Key Features

• DALI-2 control device according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-302
• Provides 2 instances, instance 0 is push button instance, instance 1 is rotary movement instance
• DALI rotary switch for dimming, color and color temperature control
• Individual DALI Commands and operating modes can be assigned to the push and rotary button
• Multiple operating modes can be set by the DALI-2 controller using command SET OPERATING MODE (DTR0)
• Instance mode for sending DALI-2 rotating position event messages - integration in standard DALI-2 control systems
• Instance mode for sending rotating speed event messages - integration in specific control systems
• DIM mode, directly send DALI commands to DALI bus
• CCT mode, directly send DALI commands to DALI bus
• RGBW mode, directly send DALI commands to DALI bus
• Multi-master capable, multiple modules can be installed on one DALI line
• Factory default setting is DALI-2 instance mode for sending DALI-2 rotating position event messages
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
