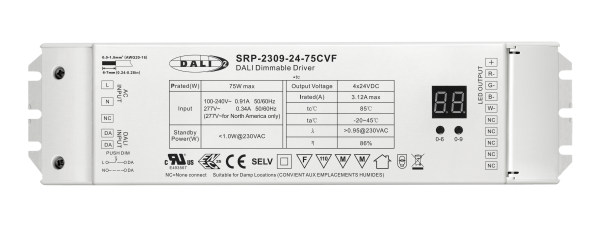

75W 4 Channels 24VDC DALI DT8 LED Constant Voltage Driver SRP-2309-24-75CVF

Product Description

SRP-2309-24-75CVF is a DALI-2 certified 75W LED driver with 4 parallel connected channels and 24VDC constant voltage output. It is designed with 100-277VAC universal input. Power factor of the driver can be over 0.95 and efficiency is higher than 86%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DALI address can be manually assigned from 00-63-FF, or automatically assigned by DALI masters. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.

Key Features

• DALI-2 certified 75w LED driver
• UL and ENEC certification
• 100-277VAC universal input
• DALI bus current consumption < 2mA
• 4 channels parallel connected channels output, 24VDC constant voltage
• 6 in 1 dimmable LED driver, max. output power 75W total

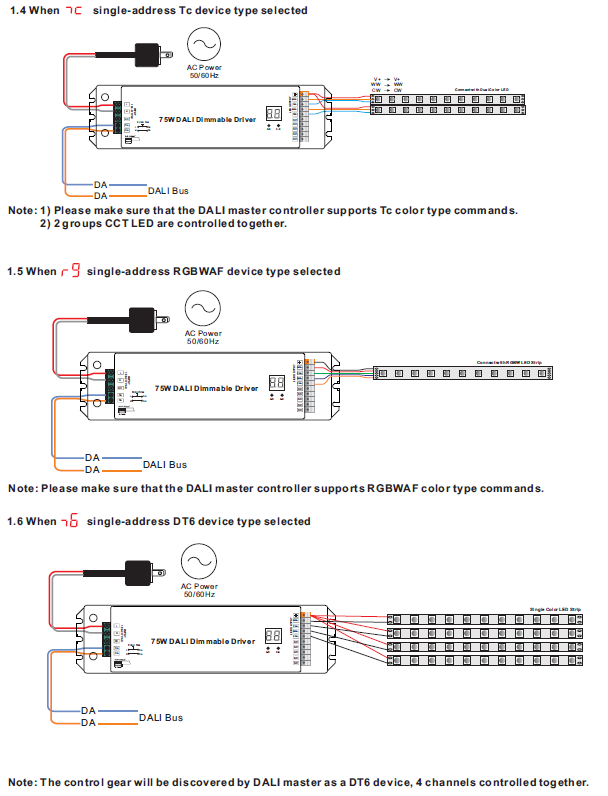

• 6 universal device types in 1: Tc, T.c, X.6, XY, r9, t6 can be set by the buttons
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• Class Ⅱ power supply, full isolated plastic case
• Power factor > 0.95, efficiency > 86%
• Color control as defined in the DALI specification device type 8
• Any of the three-color types RGBW, XY Coordinate, Tc can be preset by factory setting
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Control of four PWM outputs via a single DALI address
• Compliant with Safety Extra Low Voltage standard
• Over load, over temperature protection
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
