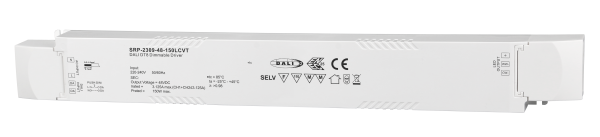

SRP-2309-48-150LCVTis a DALI-2 certified 100W LED driver with 2 parallel connected channels and 48VDC constant voltage output. It is designed with 220-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.
Key Features
DALI-2 certified 150w LED driver
UL and ENEC certification
220-240VAC universal input
Mains-powered control gear
DALI bus current consumption < 2mA
2 channels parallel connected channels output, 48VDC constant voltage
Class Ⅱ power supply, full isolated plastic case
Rubycon capacitors
Built-in active PFC function
High power factor and efficiency, PF > 0.9, Efficiency > 90%
Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
Supports DALI-2 input devices: Occupancy, light sensors and push buttons
Enables to control single color LED lighting
Fade time, system failure level, power on level configurable
1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
Smooth and deep dimming to 0.1% without flickering, no buzzing noise
Error report function
IP20 rating, suitable for indoor LED lighting applications
