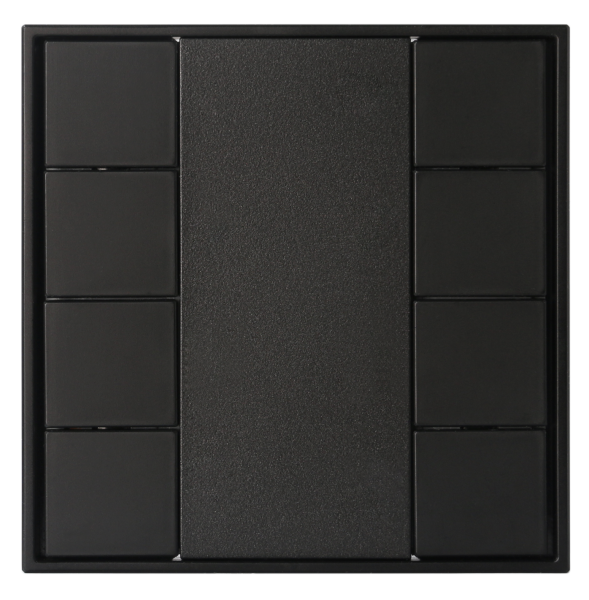

8-Key Push Button DALI Wall Switch SR-2422NK8-DA2-PL

The keypad SR-2422NK8-DA2-PL is a DALI-2 certified DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 4 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.

Key Features

• DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
• Supports feedback functionality, provides 8 LEDs
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface

Specification

Part No.	Typ. DALI Consumption	Max. DALI Consumption	No. of Instance for Control Device	No. of Feedback LED	Dimension (mm)
SR-2422NK8-DA2-PL	2mA	10mA	8 programmable push buttons	8 programmable LEDs	808026.6

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-2422NK8-DA2 User Manual
