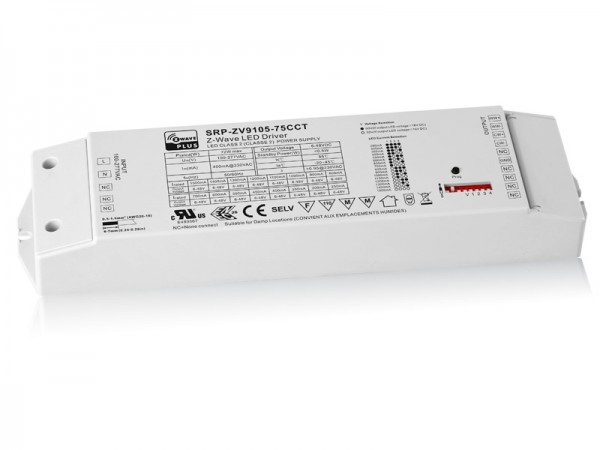

- 75W Constant Current Z-Wave LED Color Temperature Dimmable Driver SRP-ZV9105-75W-CCT
The SRP-ZV9105-75W-CCT is a UL & ENEC approved 75W constant current RF LED dimmable driver with 100-277VAC wide input and 2 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. The driver is designed with Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall controllers and controlled by the them, it is able to control tunable white LED lighting. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
Specifications
Part No. | Input Voltage | Input Current | Output Current | Output type | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZV9105-75W-CCT | 100-277VAC | 0.9A Max. | 250mA-1500mA | Constant Current | 64*244*32 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZV9105-75W-CCT User Manual
